Product Summary

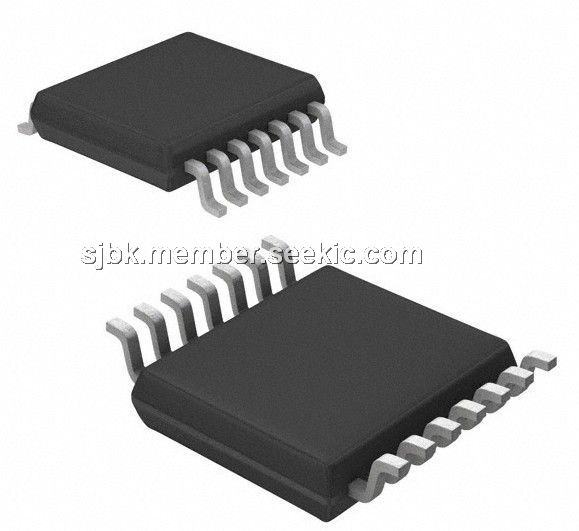

The AD9832BRUZ is a numerically controlled oscillator employing a phase accumulator, a sine look-up table and a 10-bit D/A converter integrated on a single CMOS chip. Modulation capabilities are provided for phase modulation and frequency modulation. A power-down bit allows the user to power down the AD9832BRUZ when it is not in use, the power consumption being reduced to 5 mW (5 V) or 3 mW (3 V). The part is available in a 16-lead TSSOP package. The applications of the AD9832BRUZ are DDS Tuning and Digital Demodulation.

Parametrics

AD9832BRUZ absolute maximum ratings: (1)AVDD to AGND:–0.3 V to +7 V; (2)DVDD to DGND:–0.3 V to +7 V; (3)AVDD to DVDD:–0.3 V to +0.3 V; (4)AGND to DGND:–0.3 V to +0.3 V; (5)Digital I/O Voltage to DGND:–0.3 V to DVDD + 0.3 V; (6)Analog I/O Voltage to AGND:–0.3 V to AVDD + 0.3 V; (7)Operating Temperature Range:–40℃ to +85℃; (8)Storage Temperature Range:–65℃ to +150℃; (9)Maximum Junction Temperature:+150℃; (10)TSSOP θJA Thermal Impedance:158℃/W; (11)Lead Temperature, Soldering: Vapor Phase (60 sec):+215℃, Infrared (15 sec):+220℃; (12)ESD Rating:＞ 4500 V.

Features

AD9832BRUZ features: (1)3 V/5 V Power Supply; (2)25 MHz Speed; (3)On-Chip SINE Look-Up Table; (4)On-Chip 10-Bit DAC; (5)Serial Loading; (6)Power-Down Option; (7)45 mW Power Consumption; (8)16-Lead TSSOP.

Diagrams

AD9832BRUZ functional blcok diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9832BRUZ
AD9832BRUZ

IC DDS 10BIT 25MHZ CMOS 16-TSSOP
Data Sheet
0-1: $6.16
1-10: $5.59
10-100: $4.76
100-250: $4.34
250-500: $4.06
500-1000: $3.73
AD9832BRUZ-REEL
AD9832BRUZ-REEL

IC DDS 10BIT 25MHZ CMOS 16TSSOP
Data Sheet
0-2500: $3.73
AD9832BRUZ-REEL7
AD9832BRUZ-REEL7

IC DDS 10BIT 25MHZ CMOS 16TSSOP
Data Sheet
0-1000: $3.73
