Product Summary

The BLX15 is a common emitter device designed for high linearity class A/AB HF applications.

Parametrics

BLX15 absolute maximum ratings: (1)IC: 10 A; (2)VCB: 110 V; (3)PDISS: 233 W @ TC = 25℃; (4)TJ: -55 to +200℃; (5)TSTG: -55 to +200℃; (6)θJC: 0.75℃/W.

Features

BLX15 features: (1)Gold Metalization; (2)Emitter Ballasting.

Diagrams

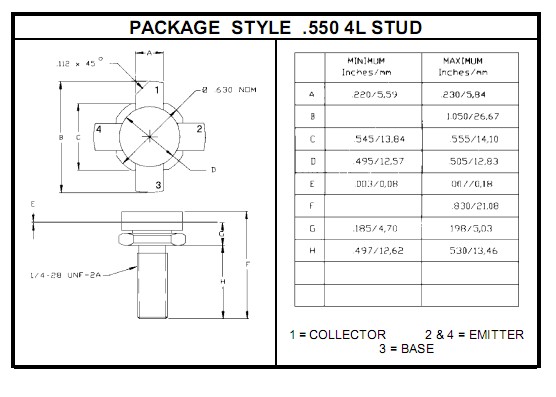

BLX15 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BLX15
BLX15
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $57.38
1-10: $52.65
10-25: $47.25
25-50: $41.85
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BLX13C
BLX13C
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $43.20
1-10: $36.00
10-25: $32.40
25-50: $28.80
BLX14
BLX14
Other

Data Sheet
Negotiable
BLX15
BLX15
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $57.38
1-10: $52.65
10-25: $47.25
25-50: $41.85
