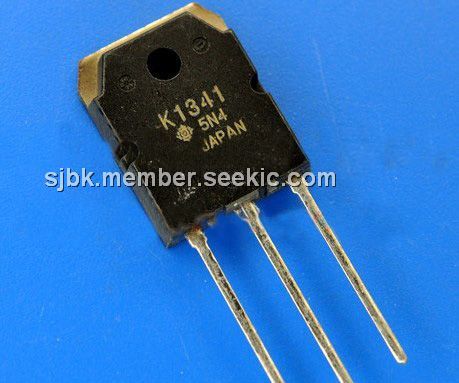

Product Summary
The 2SK1341 is the silicon N-channel MOS FET which is used for high speed power swicthing.
Parametrics
2SK1341 absolute maximum ratings: (1)Drain to source voltage: 900 V; (2)Gate to source voltage: ±30 V; (3)Drain current: 6A; (4)Drain peak current: 15A; (5)Body to drain diode reverse drain current: 6A; (6)Channel dissipation: 100 W; (7)Channel temperature: 150 ℃; (8)Storage temperature: –55 to +150 ℃.
Features
2SK1341 features: (1)Low on-resistance; (2)High speed switching; (3)Low drive current; (4)No secondary breakdown; (5)Suitable for switching regulator and DC-DC converter.

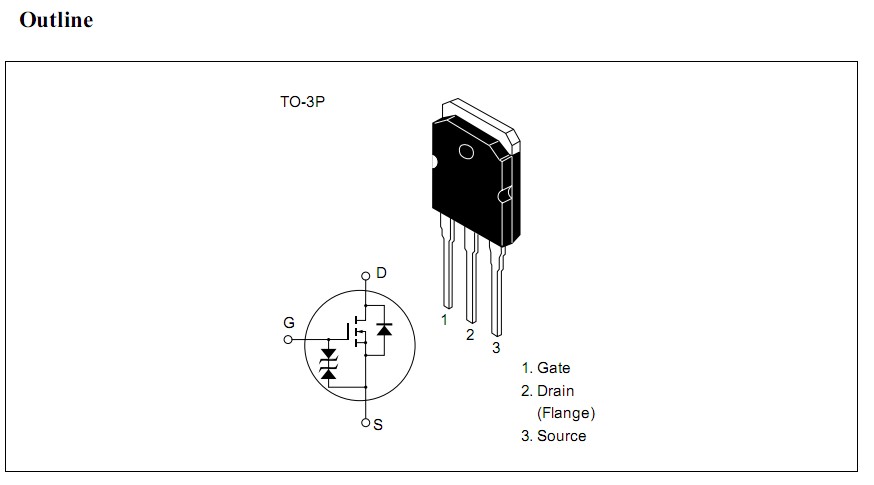

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
2SK1341 |
Other |
Data Sheet |
Negotiable |
|
||||||||
