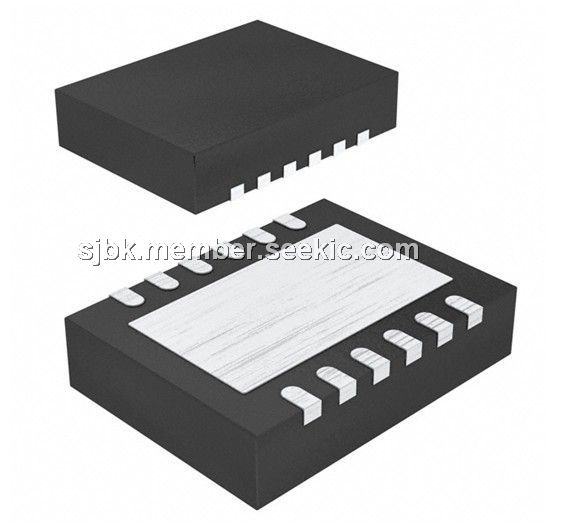

BQ27541DRZR

BQ27541DRZR, Single Cell Li-Ion Battery Fuel Gauge, SON12, 6V, 250mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: BQ27541DRZR

Brand:: Texas Instruments - TI | Pack: SON | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-09

From Other Seller

Part Number:BQ27541DRZR
US $0.01 - 100.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BQ27541DRZR is a single cell Li-Ion battery fuel gauge that provides fuel gauging for single-cell Li-Ion battery packs. The device requires little system microcontroller firmware development for accurate battery fuel gauging. The BQ27541DRZR resides within the battery pack or on the system’s main-board with an embedded battery (nonremovable). The BQ27541DRZR uses the patented Impedance Track algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), run-time to empty (min.), battery voltage (mV), and temperature (℃). The applications of the BQ27541DRZR include Smartphones, PDAs, Digital Still and Video Cameras, Handheld Terminals, MP3 or Multimedia Players.

Parametrics

BQ27541DRZR absolute maximum ratings: (1)Regulator input, REGIN, VI: -0.3 to 24 V; (2)Supply voltage range, VCC: -0.3 to 2.75 V; (3)Open-drain I/O pins (SDA, SCL, HDQ), VIOD: -0.3 to 6 V; (4)BAT input, VBAT: -0.3 to 6 V; (5)Input voltage range to all others, VI: -0.3 to VCC + 0.3 V; (6)Human Body Model (HBM), BAT pin, ESD: 1.5kV; Human Body Model (HBM), all pins, ESD: 2kV; (7)Functional temperature range, TF: -40 to 100℃; (8)Storage temperature range, Tstg: -65 to 150℃.

Features

BQ27541DRZR features: (1)Battery Fuel Gauge for 1-Series Li-Ion Applications; (2)Microcontroller Peripheral Provides: Accurate Battery Fuel Gauging; Internal Temperature Sensor for System Temperature Reporting; SHA-1/HMAC Authentication; SHA-1/HMAC Authentication FLASH; (3)Battery Fuel Gauging Based on Patented Impedance Track Technology, Models Battery Discharge Curve for Accurate Time-To-Empty Predictions; Automatically Adjusts for Battery Aging, Battery Self-Discharge, and Temperature/Rate Inefficiencies; Low-Value Sense Resistor (5 mΩ to 20 mΩ); (4)HDQ and I2C. Interface Formats for Communication with Host System; (5)Communication with Host System.
