IR2110

power MOSFET, IGBT driver, DIP, -0.3 to 525 V, high pulse current buffer stage, high voltage, high speed

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: IR2110

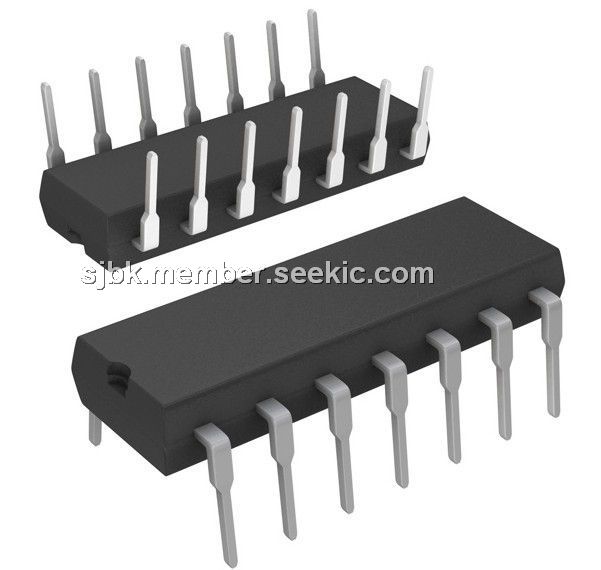

Brand:: International Rectifier - IR | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-02

From Other Seller

Part Number:IR2110
US $1.00 - 10.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

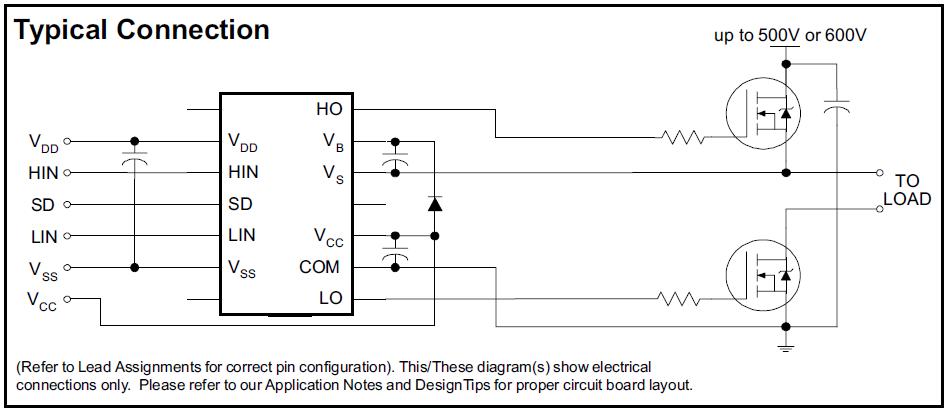

The IR2110 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The IR2110 features a high pulse current buffer stage designed for minimum driver cross-conduction.

Parametrics

IR2110 absolute maximum ratings: (1)High side floating supply voltage: -0.3 to 525 V; (2)High side floating supply offset voltage: VB - 25 to VB + 0.3 V; (3)High side floating output voltage: VS - 0.3 to VB + 0.3 V; (4)Low side fixed supply voltage: -0.3 to 25 V; (5)Low side output voltage: -0.3 to VCC + 0.3 V; (6)Logic supply voltage: -0.3 to VSS + 25 V; (7)Logic supply offset voltage: VCC - 25 to VCC + 0.3 V; (8)Logic input voltage (HIN, LIN & SD): VSS - 0.3 to VDD + 0.3 V; (9)Allowable offset supply voltage transient: 50 V/ns; (10)Package power dissipation @ TA ≤ +25℃ (14 lead DIP): 1.6 W; (11)Thermal resistance, junction to ambient (14 lead DIP): 75 ℃/W; (12)Junction temperature: 150 ℃; (13)Storage temperature: -55 to 150 ℃; (14)Lead temperature (soldering, 10 seconds): 300 ℃.

Features

IR2110 features: (1)Floating channel designed for bootstrap operation Fully operational to +500V or +600V Tolerant to negative transient voltage dV/dt immune; (2)Gate drive supply range from 10 to 20V; (3)Undervoltage lockout for both channels; (4)3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset; (5)CMOS Schmitt-triggered inputs with pull-down; (6)Cycle by cycle edge-triggered shutdown logic; (7)Matched propagation delay for both channels; (8)Outputs in phase with inputs.
