Product Summary

The TLE4905L is a Uni- and Bipolar Hall IC Switch for Magnetic Field Applications. It has been designed specifically for automotive and industrial applications. Reverse polarity protection is included on-chip as is output protection against negative voltage transients. Typical applications of the TLE4905L are position/proximity indicators, brushless DC motor commutation, rotational indexing etc.

Parametrics

TLE4905L absolute maximum ratings: (1)Supply voltage:-40V to 32V; (2)Supply voltage:40V; (3)Output voltage:32V; (4)Output current:100mA; (5)Output reverse current:100mA; (6)Junction temperature:-40℃ to 150℃; (7)Junction temperature:170℃; (8)Junction temperature:210℃; (9)Storage temperature:-50℃ to 150℃; (10)Thermal resistance:190K/W.

Features

TLE4905L features: (1)Digital output signal; (2)For unipolar and alternating magnetic fields; (3)Large temperature range; (4)Temperature compensated magnetic performance; (5)Protection against reversed polarity; (6)Output protection against electrical disturbances.

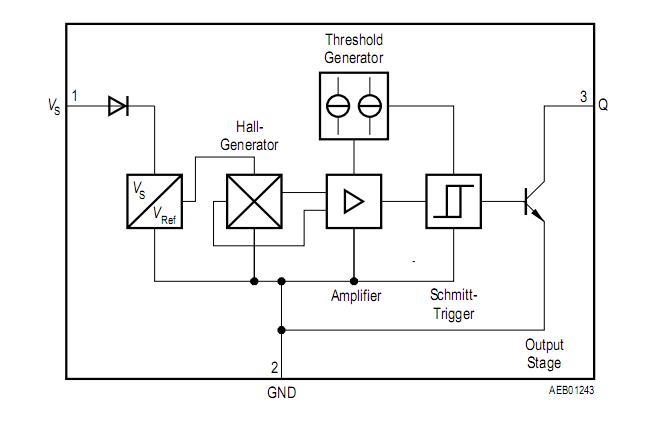

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLE4905L
TLE4905L

Infineon Technologies

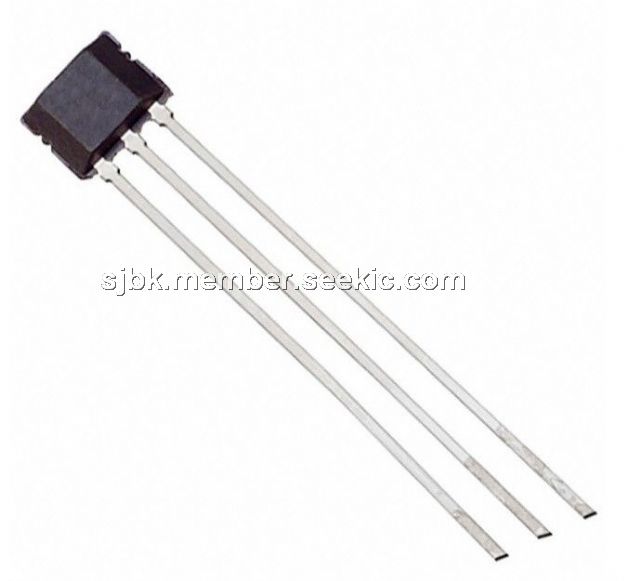

Board Mount Hall Effect / Magnetic Sensors UNI/BIPOLAR HALL IC SWITCH FOR MAG FIELD

Data Sheet

0-960: $0.38
960-1000: $0.30
1000-2000: $0.26
2000-8000: $0.24
TLE4905L E6433
TLE4905L E6433

Infineon Technologies

Board Mount Hall Effect / Magnetic Sensors Unipolar 3.8V - 24V 8 mA

Data Sheet

0-1: $0.70
1-10: $0.62
10-100: $0.49
100-500: $0.38
