Product Summary

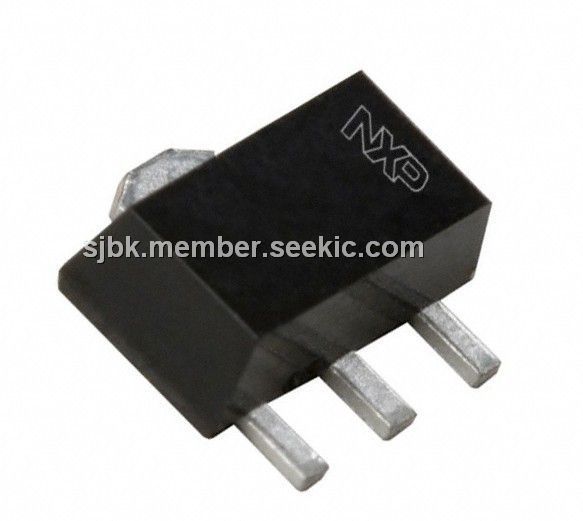

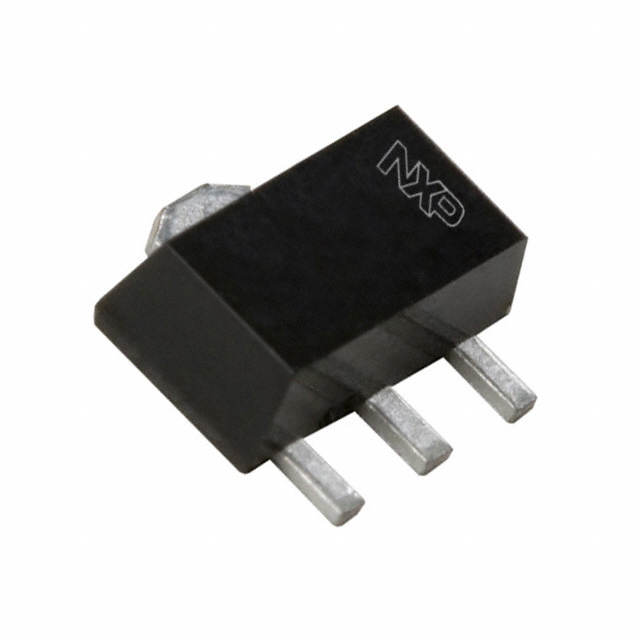

The BCX56-16 is a NPN medium power transistor. The NPN medium power transistor is packed in a SOT89 plastic package. PNP complements: BCX51, BCX52 and BCX53. The application of the BCX56-16 is: Driver stages of audio and video amplifiers.

Parametrics

BCX56-16 absolute maximum rating: (1)VEBO emitter-base voltage open collector 5 V; (2)IC collector current (DC) 1 A; (3)ICM peak collector current 1.5 A; (4)IBM peak base current 0.2 A; (5)Ptot total power dissipation Tamb 25 ℃; 1.3 W; (6)Tstg storage temperature -65 +150 ℃; (7)Tj junction temperature 150 ℃; (8)Tamb operating ambient temperature -65 +150 ℃.

Features

BCX56-16 features: (1)High current (max. 1 A); (2)Low voltage (max. 80 V).

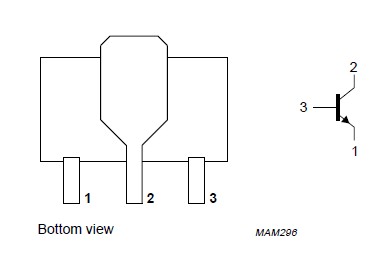

Diagrams
