Product Summary
The ATMEGA16A-PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA16A-PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA16A-PU absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Voltage on any Pin except RESET; (3)with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0mA PDIP and 400.0mA TQFP/MLF.
Features
ATMEGA16A-PU features: (1)High-performance, Low-power AVR?8-bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory segments; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Power-on Reset and Programmable Brown-out Detection; (6)Internal Calibrated RC Oscillator; (7)External and Internal Interrupt Sources; (8)16K Bytes of In-System Self-programmable Flash program memory; (9)512 Bytes EEPROM; (10)1K Byte Internal SRAM; (11)Write/Erase Cycles: 10,000 Flash/100,000 EEPROM.

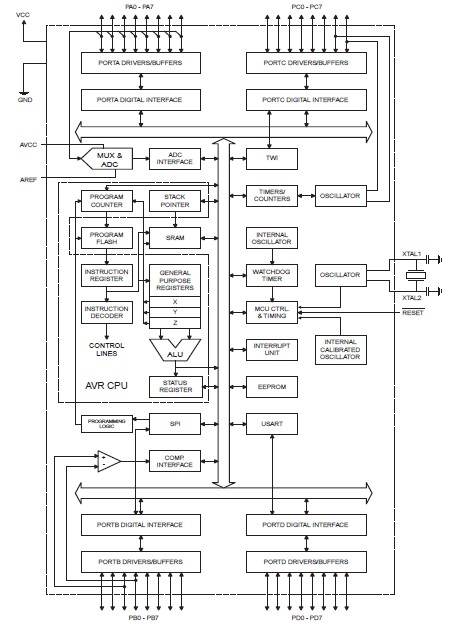

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ATMEGA16A-PU |
Atmel |
8-bit Microcontrollers (MCU) 16KB In-system Flash 2.7V - 5.5V |
Data Sheet |
|
|
|||||||||||||
