Product Summary

The FYP2010DNTU is a schottky barrier rectifier. The applications of the FYP2010DNTU include Switched mode power supply, Freewheeling diodes.

Parametrics

FYP2010DNTU absolute maximum ratings: (1)Maximum Repetitive Reverse Voltage: 100 V; (2)Maximum DC Reverse Voltage: 100 V; (3)Average Rectified Forward Current @ TC = 120℃: 20 A; (4)Non-repetitive Peak Surge Current (per diode) 60Hz Single Half-Sine Wave: 150 A; (5)Operating Junction and Storage Temperature: -65 to +150 ℃.

Features

FYP2010DNTU features: (1)Low forward voltage drop; (2)High frequency properties and switching speed; (3)Guard ring for over-voltage protection.

Diagrams

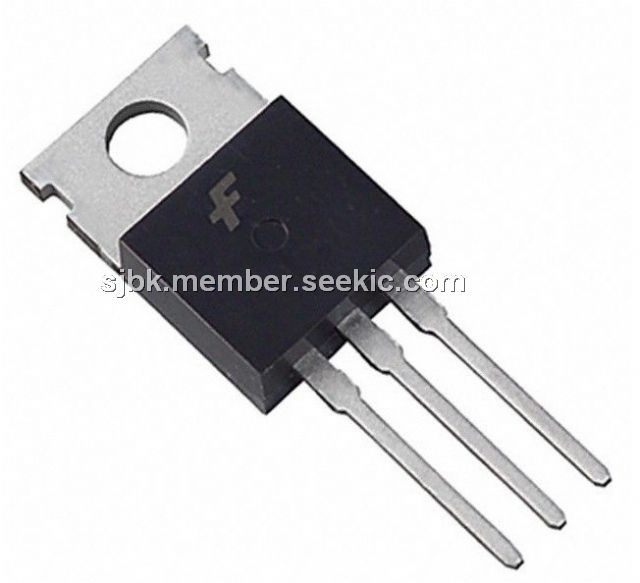

FYP2010DNTU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FYP2010DNTU
FYP2010DNTU

Fairchild Semiconductor

Schottky (Diodes & Rectifiers) Schottky Barrier

Data Sheet

0-1: $0.55
1-25: $0.48
25-100: $0.45
100-250: $0.39
FYP2010DNTU_Q
FYP2010DNTU_Q

Fairchild Semiconductor

Schottky (Diodes & Rectifiers) Schottky Barrier

Data Sheet

Negotiable
