Product Summary
The PEF22554HTV2.1 is a quad E1/T1/J1 Framer and Line Interface Component for Long and Short Haul Applications.
Parametrics
PEF22554HTV2.1 absolute maxing ratings: (1)Ambient temperature under bias TA: min=-40℃, max=85℃; (2)Storage temperature Tstg: min=-65℃, max=125℃; (3)IC supply voltage (pads, digital) VDD: min=-0.3V, max=3.60V; (4)IC supply voltage (core, digital) VDDC: min=-0.3V, max=1.98V; (5)IC supply voltage PLL (analog) VDDP: min=-0.3, max=3.60V; (6)IC supply voltage receive (analog) VDDR: min=-0.3V, max=3.60V; (7)IC supply voltage transmit (analog) VDDX: min=-0.3V, max=3.60V; (8)Voltage on any pin with respect to ground VS: min=-0.3V, max=3.60V.
Features
PEF22554HTV2.1 characteristics: (1)Ambient temperature TA: min=-40℃, max=85℃; (2)Supply voltages VDD: min=3.13V, max=3.46V; VDDP: min=3.13V, max=3.46V; VDDR: min=3.13V, max=3.46V; VDDC: min=1.62V, max=1.98V; VDDX: min=3.13V, max=3.46V; (3)Analog input voltages VIA: min=0, max=3.60V; (4)Digital input voltages VID: min=0, max=3.46V.

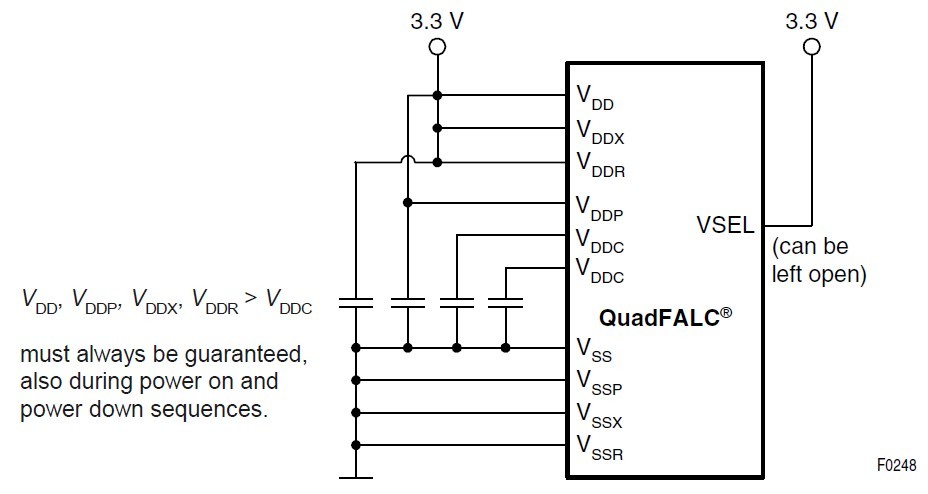

Diagrams

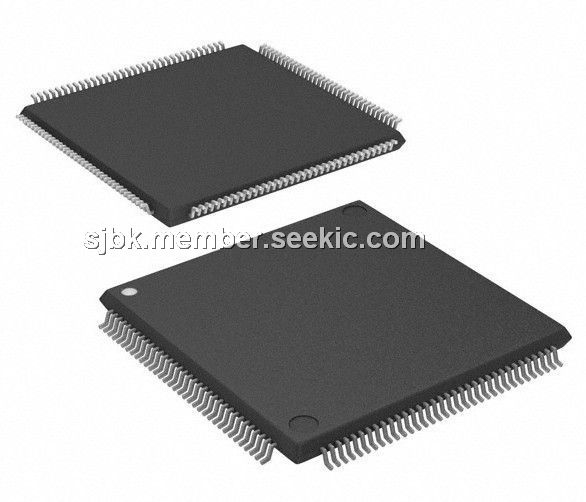

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PEF22554HTV2.1 |
Infineon Technologies |
Network Controller & Processor ICs T/E |
Data Sheet |
Negotiable |
|
||||
