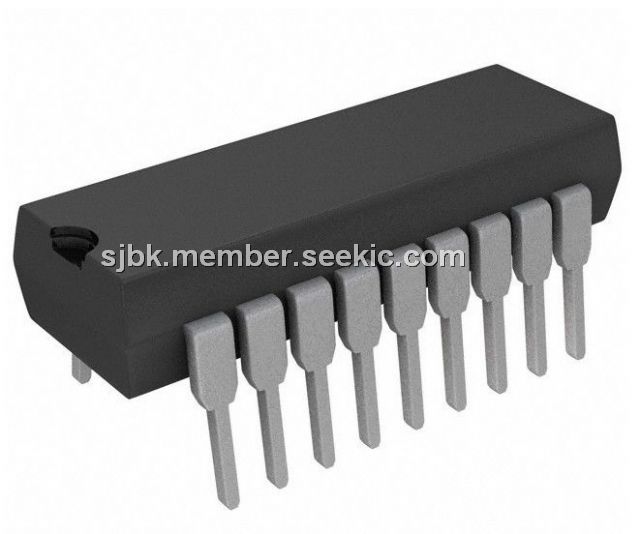

PIC16F84A-04/P

Product Summary

The PIC16F84A-04/P is an 8-Bit Microcontroller. The program memory contains 1K words, which translates to 1024 instructions, since each 14-bit program memory word is the same width as each device instruction. The data memory (RAM) contains 68 bytes. Data EEPROM is 64 bytes. The PIC16F84A-04/P has a 13-bit program counter capable of addressing an 8K * 14 program memory space. For the PIC16F84A-04/P, the first 1K x 14 (0000h-03FFh) are physically implemented. Accessing a location above the physically implemented address will cause a wraparound.

Parametrics

PIC16F84A-04/P absolute maximum ratings: (1)Ambient temperature under bias:-55℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4):-0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS:-0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS:-0.3 to +14V; (6)Voltage on RA4 with respect to VSS:-0.3 to +8.5V; (7)Total power dissipation:800 mW; (8)Maximum current out of VSS pin:150 mA; (9)Maximum current into VDD pin:100 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD):± 20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD):± 20 mA; (12)Maximum output current sunk by any I/O:25 mA; (13)Maximum output current sourced by any I/O pin:20 mA; (14)Maximum current sunk by PORTA:80 mA; (15)Maximum current sourced by PORTA:50 mA; (16)Maximum current sunk by PORTB:150 mA; (17)Maximum current sourced by PORTB:100 mA.

Features

PIC16F84A-04/P features: (1)1024 words of program memory; (2)68 bytes of data RAM; (3)64 bytes of data EEPROM; (4)14-bit wide instruction words; (5)8-bit wide data bytes; (6)15 special function hardware registers; (7)Eight-level deep hardware stack; (8)Direct, indirect and relative addressing modes ; (9)13 I/O pins with individual direction control; (10)High current sink/source for direct LED drive:25 mA sink max. per pin, 25 mA source max. per pin; (11)TMR0: 8-bit timer/counter with 8-bit programmable prescaler; (12)1000 erase/write cycles Enhanced Flash program memory; (13)1,000,000 typical erase/write cycles EEPROM data memory; (14)EEPROM Data Retention > 40 years; (15)In-Circuit Serial Programming (ICSP) - via two pins; (16)Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST); (17)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (18)Code-protection; (19)Power saving SLEEP mode; (20)Selectable oscillator options.

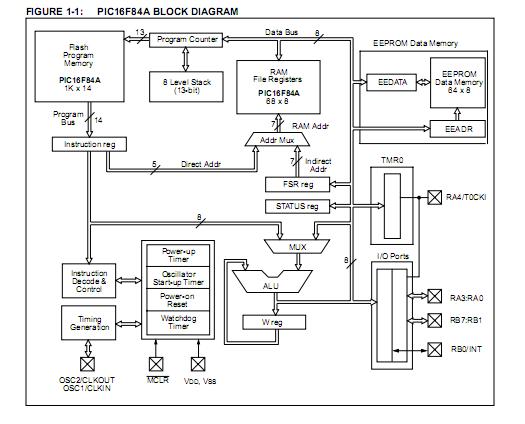

Diagrams
