Product Summary
The 2SC2879 is a Toshiba transistor.
Parametrics
2SC2879 absolute maximum ratings: (1)Collector Base voltage: 45V; (2)collector emitter voltage: 45V; (3)collector emitter voltage: 18V; (4)emitter base voltage: 4V; (5)collector power dissipation: 250W; (6)Junction temperature: 175℃; (7)Storage temperautre range: -65 to 175 ℃.
Features
2SC2879 features: (1)Specified 12.5V, 28MHz Characteristics; (2)Output Power: 100Wpep; (3)Power Gain: 13db; (4)collector efficiency: 35%; (5)Intermodulation Distortion: -24dB.

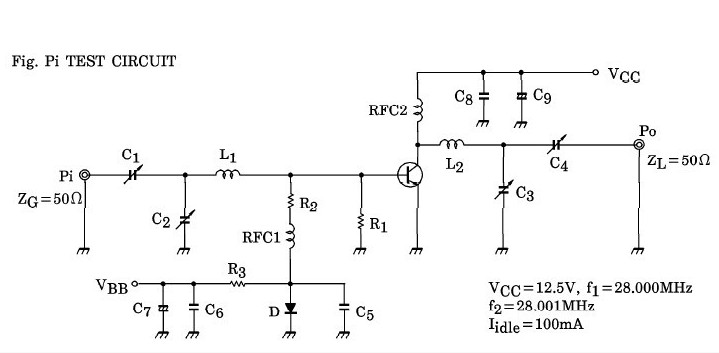

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
2SC2879 |
Other |
Data Sheet |
Negotiable |
|
||||||
