Product Summary

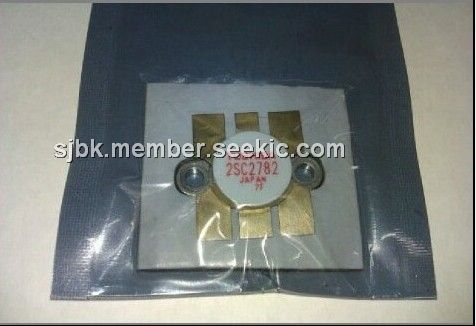

The 2SC2782 is a silicon NPN epitaxial planar type transistor. It is suitable for VHF band power amplifier applications.
Parametrics
2SC2782 absoltue maximum ratings: (1)Collector-Base Voltage, VCBO: 36 V; (2)Collector-Emitter Voltage, VCEO: 16 V; (3)Emitter-Base Voltage, VEBO: 4 V; (4)Collector Current, IC: 20 A; (5)Collector Power Dissipation, PC: 220 W; (6)Junction Temperature, Tj: 175℃; (7)Storage Temperature Range, Tstg: -65 to 175℃.
Features
2SC2782 features: (1)Output Power: Po = 80W (Min.) (f = 175MHz, VCC = 12.5V, Pi = 18W).

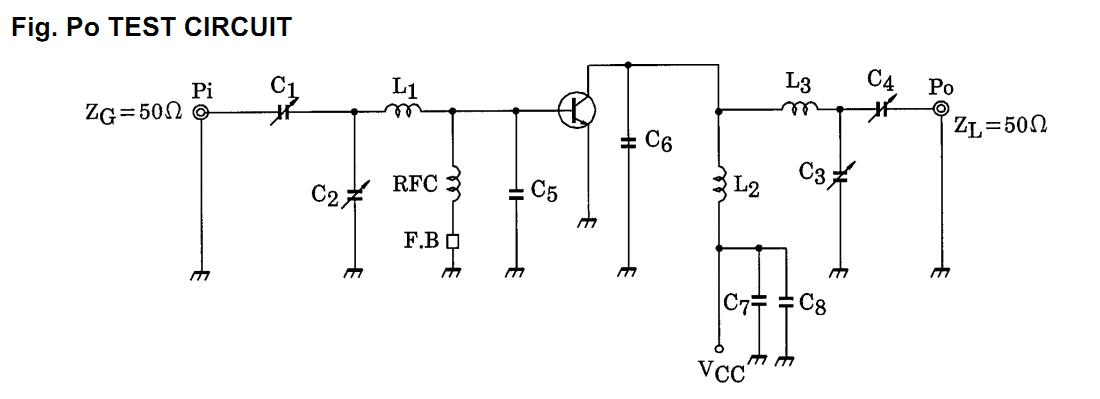

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC2782 |
Other |
|
Data Sheet |
Negotiable |
|
||||
