Product Summary

The ATTINY84V-10SSU is a 8-bit microcontroller. The ATTINY84V-10SSU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY84V-10SSU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATTINY84V-10SSU maximum ratings: (1)Operating Temperature -40℃ ~ 85℃; (2)Connectivity USI; (3)Peripherals Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT; (4)Voltage - Supply (Vcc/Vdd) 1.8 V ~ 5.5 V; (5)RoHS Status RoHS Compliant; (6)Speed 10MHz; (7)Oscillator Type Internal.

Features

ATTINY84V-10SSU features: (1)High Performance, Low Power AVR8-Bit Microcontroller; (2)Advanced RISC Architecture; (3)Non-Volatile Program and Data Memories; (4)Peripheral Features; (5)Special Microcontroller Features; (6)Operating Voltage: 1.8 – 5.5V for ATtiny24V/44V/84V; (7)Industrial Temperature Range: -40℃ to +85℃; (8)Low Power Consumption; (9)Active Mode (1 MHz System Clock): 300 μA @ 1.8V; (10)Power-Down Mode: 0.1 μA @ 1.8V.

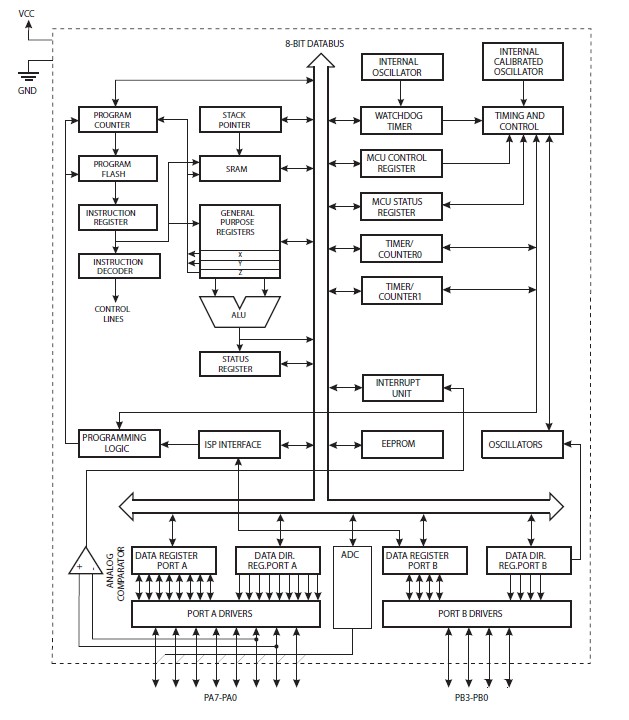

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATTINY84V-10SSU
ATTINY84V-10SSU

Atmel

8-bit Microcontrollers (MCU) 8-bit 512B SRAM 10MHz 1.8-5.5V

Data Sheet

0-1: $1.74
1-10: $1.45
10-25: $1.09
25-100: $0.99
ATTINY84V-10SSUR
ATTINY84V-10SSUR

Atmel

8-bit Microcontrollers (MCU) AVR 38K FLSH 2K SRAM 1KB EE 10MHz 1.8V

Data Sheet

0-2500: $0.99
2500-3000: $0.99
