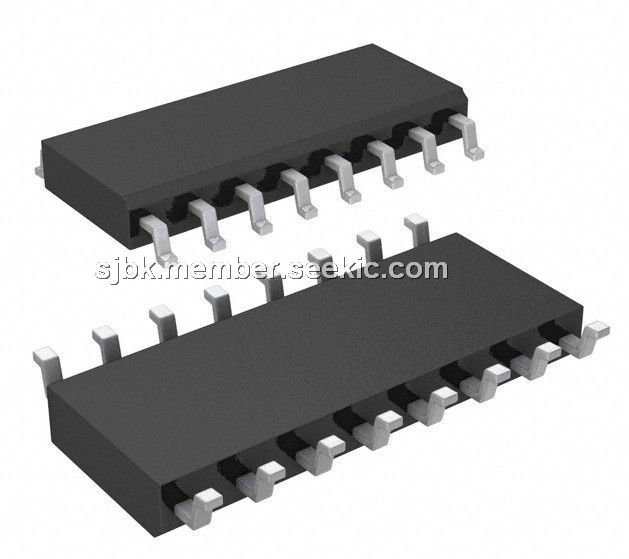

74HC4053D

Si-gate CMOS device, SOP16, -0.5 to +11.0 V, ±20 mA, high-speed, Low ON resistance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: 74HC4053D

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-04

From Other Seller

Part Number:74HC4053D
US $1.00 - 10.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

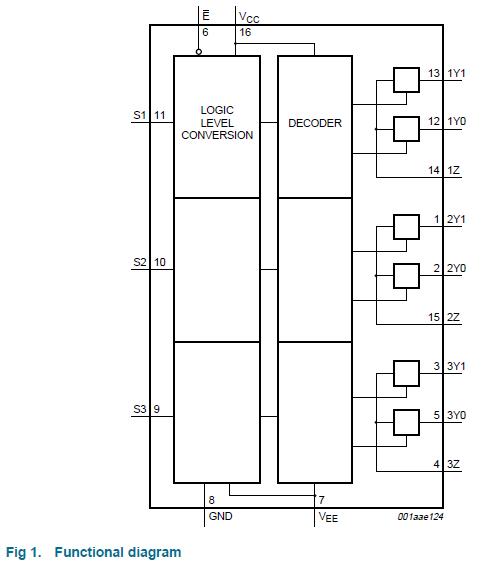

The 74HC4053D is a high-speed Si-gate CMOS device and is pin compatible with the HEF4053B. It is specified in compliance with JEDEC standard no. 7A. The 74HC4053D is triple 2-channel analog multiplexer/demultiplexer with a common enable input (E). Each multiplexer/demultiplexer has two independent inputs/outputs (nY0 and nY1), a common input/output (nZ) and three digital select inputs (Sn). The applications of the 74HC4053D include Analog multiplexing and demultiplexing, Digital multiplexing and demultiplexing, Signal gating.

Parametrics

74HC4053D absolute maximum ratings: (1)supply voltage: -0.5 to +11.0 V; (2)input clamping current: ±20 mA at VI < -0.5 V or VI > VCC + 0.5 V; (3)switch clamping current: ±20 mA at VS < -0.5 V or VS > VCC + 0.5 V.

Features

74HC4053D features: (1)Low ON resistance: 80 W (typical) at VCC - VEE = 4.5 V, 70 W (typical) at VCC - VEE = 6.0 V, 60 W (typical) at VCC - VEE = 9.0 V; (2)Logic level translation: To enable 5 V logic to communicate with ±5 V analog signals; (3)Typical break before make built in; (4)Complies with JEDEC standard no. 7A; (5)ESD protection: HBM EIA/JESD22-A114-C exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V; (6)Multiple package options; (7)Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃.
