Product Summary
The 2n5088 is a NPN General Purpose Amplifier. This device is designed for low noise, high gain, general purpose amplifier applications at collector currents from 1μA to 50 mA.
Parametrics
2n5088 absolute maximum ratings: (1)VCEO Collector-Emitter Voltage: 30V; (2)VCBO Collector-Base Voltage: 35V; (3)VEBO Emitter-Base Voltage: 4.5 V; (4)IC Collector Current - Continuous: 100 mA; (5)TJ, Tstg Operating and Storage Junction Temperature Range: -55 to +150℃.
Features
2n5088 features: (1)PD, Total Device Dissipation: 625mW; 5.0mW/℃ when Derate above 25℃; (2)RθJC, Thermal Resistance, Junction to Case: 83.3℃/W; (3)RθJA, Thermal Resistance, Junction to Ambient: 200℃/W.

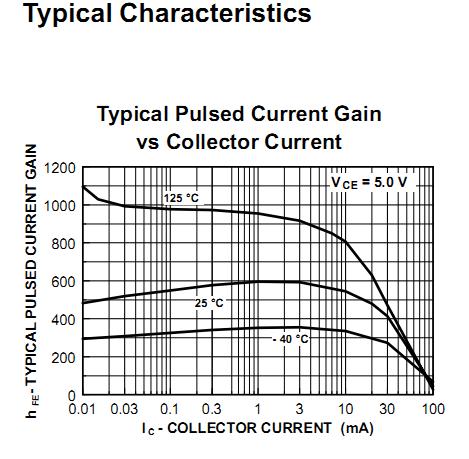

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

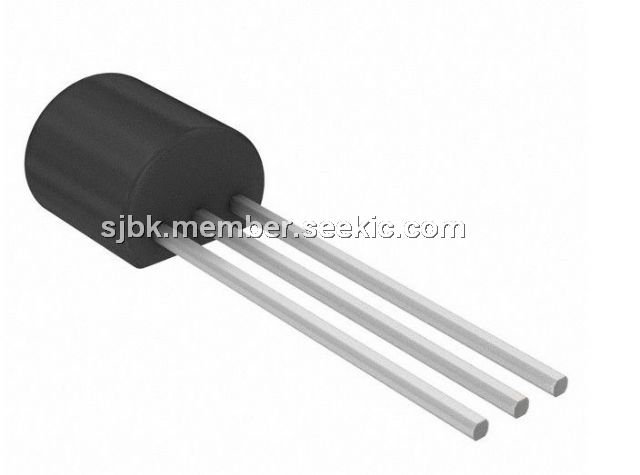

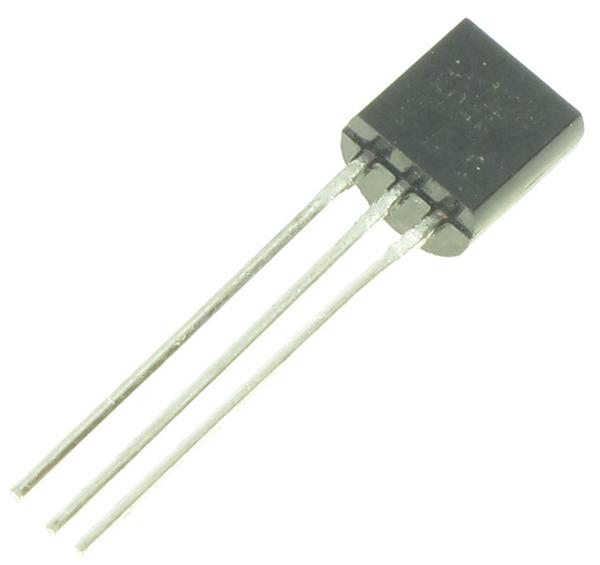

![]() 2N5088 |
