Product Summary
The 74HC595 is a high-speed Si-gate CMOS device. It is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A.
Parametrics
74HC595 absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7.0 V; (2)IIK, input diode current: ±20 mA max when VI < -0.5 V to VI > VCC + 0.5 V; (3)IOK, output diode current: ±20 mA max when VO < -0.5 V to VO > VCC + 0.5 V; (4)ICC, IGND, VCC or GND current: ±70 mA max; (5)Tstg, storage temperature: -65 +150℃; (6)Ptot, power dissipation: 500 mW max when Tamb = -40 to +125℃.
Features
74HC595 features: (1)8-bit serial input; (2)8-bit serial or parallel output; (3)Storage register with 3-state outputs; (4)Shift register with direct clear; (5)100 MHz (typical) shift out frequency; (6)ESD protection.

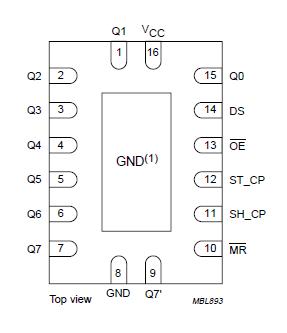

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC595DB-T |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REG W/OUTPUT LATCH |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC595DG |
ON Semiconductor |
Counter Shift Registers SHIFT REGSTR 3-STATE |
Data Sheet |
|
|
||||||||||||
|
74HC595DR2G |
ON Semiconductor |
Counter Shift Registers SHIFT RGSTR 3-STATE |
Data Sheet |
|
|
||||||||||||
 |
74HC595N,112 |
NXP Semiconductors |
Counter Shift Registers 8BIT SHIFT REGISTER W/OUTPUT LATCH |
Data Sheet |
|
|
||||||||||||
|
74HC595PW |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REG W/OUTPUT LATCH |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC595PW,112 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REG |
Data Sheet |
|
|
||||||||||||
|
74HC595PW,118 |
NXP Semiconductors |
Counter Shift Registers 8BIT SHIFT REGISTER W/OUTPUT LATCH |
Data Sheet |
|
|
||||||||||||
 |
74HC595DTR2G |
ON Semiconductor |
Counter Shift Registers SHIFT RGSTR 3-STATE |
Data Sheet |
|
|
||||||||||||
