AT89C4051-24PU

8-bit, Microcontroller, DIP-20

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.62~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.62~2.50

PartNumber:: AT89C4051-24PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-21

From Other Seller

Part Number:AT89C4051-24PU
US $0.62 - 2.50
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

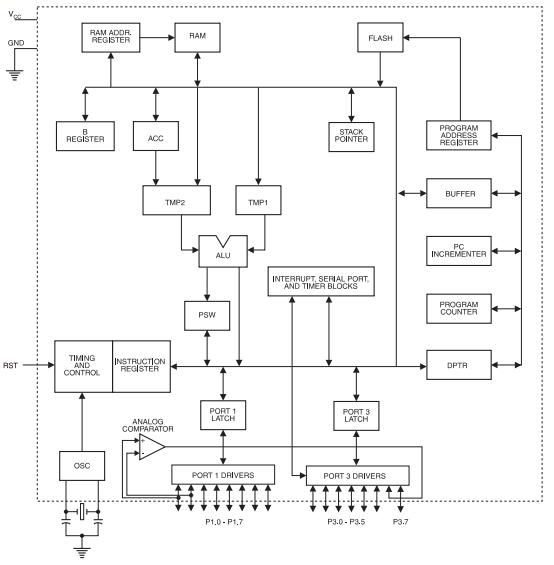

The AT89C4051-24PU is a low-voltage, high-performance CMOS 8-bit microcontroller with 4K bytes of Flash programmable and erasable read-only memory. The AT89C4051-24PU is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51 instruction set. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the AT89C4051-24PU is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications. The AT89C4051-24PU provides the following standard features: 4K bytes of Flash, 128 bytes of RAM, 15 I/O lines, two 16-bit timer/counters, a five-vector, two-level interrupt architecture, a full duplex serial port, a precision analog comparator, on-chip oscillator and clock circuitry.

Parametrics

AT89C4051-24PU absolute maximum ratings: (1)Operating Temperature:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0V to +7.0V; (4)Maximum Operating Voltage:6.6V; (5)DC Output Current:25.0 mA.

Features

AT89C4051-24PU features: (1)Compatible with MCS51 Products; (2)4K Bytes of Reprogrammable Flash Memory:Endurance: 10,000 Write/Erase Cycles; (3)2.7V to 6V Operating Range; (4)Fully Static Operation: 0 Hz to 24 MHz; (5)Two-level Program Memory Lock; (6)128 x 8-bit Internal RAM; (7)15 Programmable I/O Lines; (8)Two 16-bit Timer/Counters; (9)Six Interrupt Sources; (10)Programmable Serial UART Channel; (11)Direct LED Drive Outputs; (12)On-chip Analog Comparator; (13)Low-power Idle and Power-down Modes; (14)Brown-out Detection; (15)Power-On Reset (POR); (16)Green (Pb/Halide-free/RoHS Compliant) Packaging.
