Product Summary

The MRF497 is NPN silicon RF power transistor which is designed for 12.5 Volt VHF large-signal power amplifier applications in commerical and industrial equipment, operating in the 25 to 50MHz frequency range.

Parametrics

MRF497 absolute maximum ratings: (1)Collector-emitter voltage: 18V; (2)Collector-Base voltage: 36V; (3)Emitter-Base voltage: 4.0V; (4)Collector-current: continuous 6.0A; (5)Total device dissipation: TC=25℃, 87.5W; Derate above 25℃, 0.5W/℃; (6)Storage temperature: -65 to +150℃.

Features

MRF497 features: (1)Low-cost, common-emitter TO-220AB package; (2)Specified 12.5V, 50 MHz performance: output power=40W, power gain=10dB min, efficiency=60%min; (3)Load mismatch capability at rated voltage and RF drive.

Diagrams

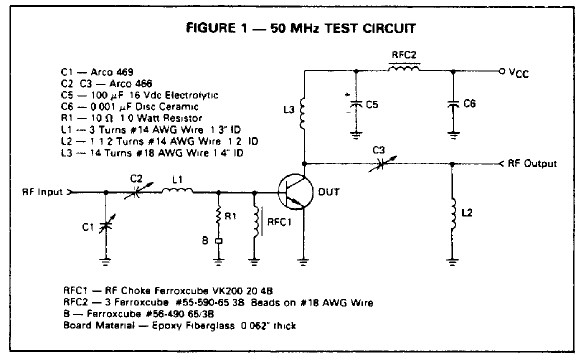

MRF497 test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MRF497
MRF497

Other


Data Sheet

Negotiable
