Product Summary

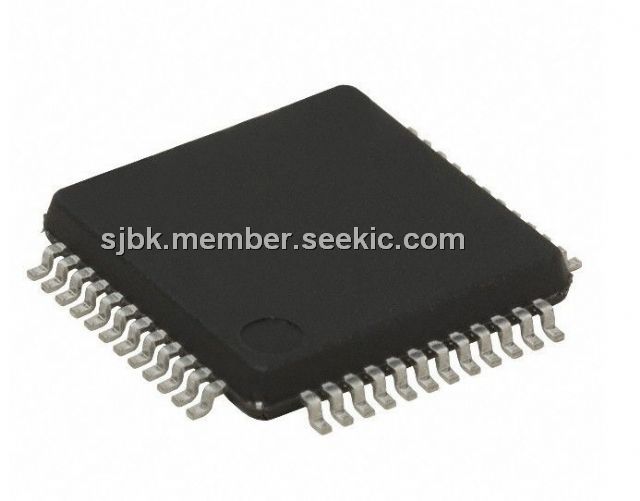

The STM32F100C8T6B is a Low & medium-density value line, advanced ARM-based 32-bit MCU with 16 to 128 KB Flash, 12 timers, ADC, DAC & 8 comm interfaces. The applications of the STM32F100C8T6B include: (1)Application control and user interface; (2)Medical and handheld equipment; (3)PC peripherals, gaming and GPS platforms; (4)Industrial applications: PLC, inverters, printers, and scanners; (5)Alarm systems, Video intercom, and HVAC.
Parametrics
STM32F100C8T6B absolute maxing ratings: (1)VDD-VSS External main supply voltage (including VDDA and VDD): min=-0.3V, max=4.0V; (2)VIN Input voltage on any other pin: min=VSS-0.3V, MAX=+5.5V; Input voltage on any other pin: min=VSS-0.3V, max=VDD+0.3V; (3)|△VDDx| Variations between different VDD power pins: max=50mV; (4)|VSSX-VSS| Variations between all the different ground pins: max=50mW.
Features
STM32F100C8T6B features: (1)Core: ARM 32-bit Cortex-M3 CPU: 24 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1)performance; Single-cycle multiplication and hardware division; (2)Memories: 16 to 128 Kbytes of Flash memory; 4 to 8 Kbytes of SRAM; (3)Low power: Sleep, Stop and Standby modes; VBAT supply for RTC and backup registers; (4)Debug mode: Serial wire debug (SWD) and JTAG interfaces; (5)DMA: 7-channel DMA controller; Peripherals supported: timers, ADC, SPIs, I2Cs, USARTs and DACs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F100C8T6B |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT CORTEX M3 48PINS 64KB |
Data Sheet |
|
|
||||||||||||
|
STM32F100C8T6BTR |
STMicroelectronics |
ARM Microcontrollers (MCU) ARM 32Bit Value Line 48-Pin 64kB Flash |
Data Sheet |
|
|
||||||||||||
