Product Summary

The LM211Q is a single high-speed voltage comparator. It is designed to operate from a wide range of power-supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels of LM211Q are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs of LM211Q can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC–. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.

Parametrics

LM211Q absolute maximum ratings: (1)Supply voltage: VCC+: 18 V, VCC–: –18 V, VCC+ – VCC–: 36 V; (2)Differential input voltage, VID: ±30 V; (3)Input voltage, VI: ±15 V; (4)Voltage from emitter output to VCC–: 30 V; (5)Voltage from collector output to VCC–: 50 V; (6)Duration of output short circuit: 10 s; (7)Package thermal impedance, θJA: D package: 97℃/W, P package: 85℃/W, PS package: 95℃/W, PW package: 149℃/W; (8)Package thermal impedance, θJC: FK package: 5.61℃/W, JG package: 14.5℃/W; (9)Operating virtual junction temperature, TJ: 150℃; (10)Case temperature for 60 seconds: FK package: 260℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: J or JG package: 300℃; (12)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: D, P, PS, or PW package: 260℃; (13)Storage temperature range, Tstg: –65℃ to 150℃.

Features

LM211Q features: (1)Fast Response Times; (2)Strobe Capability; (3)Maximum Input Bias Current: 300 nA; (4)Maximum Input Offset Current: 70 nA; (5)Can Operate From Single 5-V Supply; (6)Available in Q-Temp Automotive: High-Reliability Automotive Applications, Configuration Control/Print Support, Qualification to Automotive Standards.

Diagrams

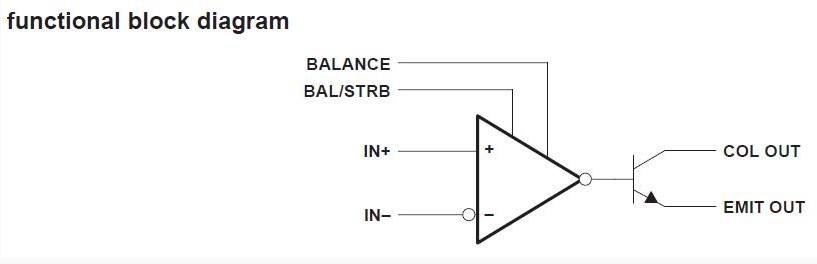

LM211Q functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM211QD
LM211QD

Texas Instruments

Comparator ICs Differential w/Strob

Data Sheet

0-1: $0.38
1-25: $0.30
25-100: $0.26
100-250: $0.23
LM211QDR
LM211QDR

Texas Instruments

Comparator ICs Single Strobed Differential

Data Sheet

0-1: $0.34
1-25: $0.27
25-100: $0.23
100-250: $0.20
LM211QDRG4
LM211QDRG4

Texas Instruments

Comparator ICs Diferental Comparatr with Strobes

Data Sheet

0-1: $0.46
1-25: $0.32
25-100: $0.27
100-250: $0.24
LM211QDRG4Q1
LM211QDRG4Q1

Texas Instruments

Comparator ICs Diff Comparator

Data Sheet

0-1700: $0.19
1700-2000: $0.17
2000-2500: $0.17
2500-5000: $0.17
LM211QDRQ1
LM211QDRQ1

Texas Instruments

Comparator ICs Auto Cat Sngl Strobe Diff Comparator

Data Sheet

0-1: $0.49
1-25: $0.38
25-100: $0.34
100-250: $0.29
LM211QDREP
LM211QDREP

Texas Instruments

Comparator ICs Mil Enhance Diff Comparator

Data Sheet

0-1: $0.50
1-25: $0.41
25-100: $0.37
100-250: $0.32
LM211QDG4
LM211QDG4

Texas Instruments

Comparator ICs Differ Comparator With Strobes

Data Sheet

0-1: $0.34
1-25: $0.27
25-100: $0.24
100-250: $0.20
