Product Summary

The NCP603SN180T1G provides 300 mA of output current at fixed voltage options, or an adjustable output voltage from 5.0 V down to 1.250 V. It is designed for portable battery powered applications and offers high performance features of the NCP603SN180T1G such as low power operation, fast enable response time, and low dropout. The NCP603SN180T1G is designed to be used with low cost ceramic capacitor and is packaged in the TSOP-5/SOT23-5.

Parametrics

NCP603SN180T1G absolute maximum ratings: (1)Maximum Junction Temperature TJ(max) 150 ℃; (2)Storage Temperature TSTG -65 to 150 ℃; (3)ESD Capability, Human Body Model (Note 3) ESDHBM 3500 V; (4)ESD Capability, Machine Model (Note 3) ESDMM 400 V; (5)Moisture Sensitivity Level MSL MSL1/260; (6)Input Voltage (Note 2) Vin -0.3 to 6.5 V.

Features

NCP603SN180T1G features: (1)Output Voltage Options:Adjustable, 1.3 V, 1.5 V, 1.8 V, 2.8 V, 3.0 V, 3.3 V, 3.5 V, 5.0 V; (2)Adjustable Output by External Resistors from 5.0 V down to 1.250 V; (3)Fast Enable Turn-on Time of 15 μs; (4)Wide Supply Voltage Range Operating Range; (5)Excellent Line and Load Regulation; (6)Typical Noise Voltage of 50 μVrms without a Bypass Capacitor; (7)Enhanced ESD Protection (HBM 3.5 kV, MM 400 V); (8)These are Pb-Free Devices.

Diagrams

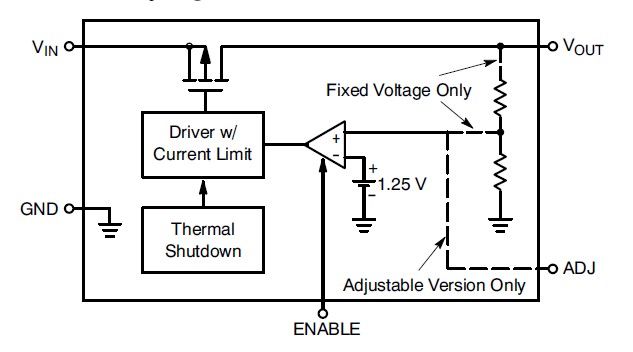

NCP603SN180T1G test circuit
