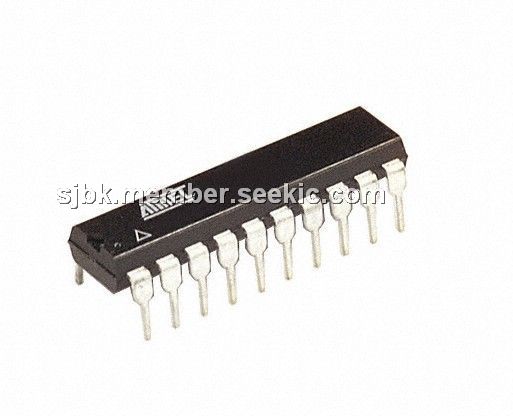

AT89S4051-24PU

20-DIP, 8-bit, microcontroller, 2K/4K bytes flash, 24 MHz, Low Power, Brownout Reset, 6.2V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: AT89S4051-24PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-01

From Other Seller

Part Number:AT89S4051-24PU
US $1.00 - 10.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT89S4051-24PU is a low-voltage, high-performance CMOS 8-bit microcontroller with 2K/4K bytes of In-System Programmable (ISP) Flash program memory. The AT89S4051-24PU is manufactured using Atmels high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51 instruction set. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89S4051-24PU is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications. Moreover, the AT89S4051-24PU is designed to be function compatible.

Parametrics

AT89S4051-24PU absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Voltage on Any Pin with Respect to Ground: -0.7V to +6.2V; (3)Maximum Operating Voltage: 5.5V; (4)DC Output Current: 25.0 mA; (5)Operating Temperature: -55℃ to +125℃.

Features

AT89S4051-24PU features: (1)Fully Static Operation: 0 Hz to 24 MHz (x1 and x2 Modes); (2)Two-level Program Memory Lock; (3)256 x 8-bit Internal RAM; (4)15 Programmable I/O Lines; (5)Two 16-bit Timer/Counters; (6)Six Interrupt Sources; (7)Programmable Serial UART Channel; (8)Direct LED Drive Outputs; (9)On-chip Analog Comparator with Selectable Interrupt; (10)8-bit PWM (Pulse-width Modulation); (11)Low Power Idle and Power-down Modes; (12)Brownout Reset; (13)Enhanced UART Serial Port with Framing Error Detection and Automatic Address Recognition; (14)Internal Power-on Reset; (15)Interrupt Recovery from Power-down Mode.
