Product Summary

The MRF454 is the RF line NPN silicon RF power transistor which is designed for power amplifier applications in industrial, commerical and amateur radio equipment to 30MHz.

Parametrics

MRF454 absolute maximum ratings: (1)Collector–Emitter Voltage: 25 Vdc; (2)Collector–Base Voltage: 45 Vdc; (3)Emitter–Base Voltage: 4.0 Vdc; (4)Collector Current — Continuous: 20 Adc; (5)Total Device Dissipation: TC = 25℃, 250W; Derate above 25℃, 1.43 W; (6)Storage Temperature Range: –65 to +150℃.

Features

MRF454 features: (1)Specified 12.5 Volt, 30 MHz Characteristics; (2)Output Power = 80 Watts; (3)Minimum Gain = 12 dB; (4)Efficiency = 50%.

Diagrams

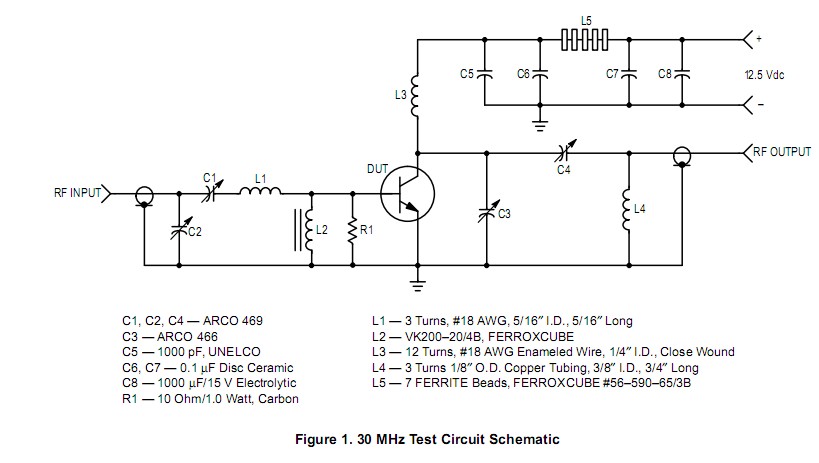

MRF454 test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF454
MRF454
M/A-COM Technology Solutions
Transistors RF Bipolar Power 2-30MHz 80Watts 12.5Volt Gain 12dB
Data Sheet
0-1: $33.11
1-10: $29.90
10-25: $28.31
25-50: $27.75
