Product Summary
The MC74VHC4052DTR2G utilizes silicon–gate CMOS technology to achieve fast propagation delay, low ON resistances, and low OFF leakage currents. These analog multiplexers/demultiplexers control analog voltages that may vary across the complete power supply range (from VCC to VEE). The MC74VHC4052DTR2G, VHC4051 and VHC4053 are identical in pinout to the high–speed HC4051A, HC4052A and HC4053A. The Channel–Select inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the Common Output/Input. When the Enable pin is HIGH, all analog switches are turned off.
Parametrics
MC74VHC4052DTR2G absolute maximum ratings: (1)Positive DC Supply Voltage (Referenced to GND): -0.5 to +7.0 V, (Referenced to VEE): -0.5 to +14.0 V; (2)Negative DC supply voltage (Referenced to GND): -7.0 to +5.0 V; (3)Analog input voltage: VEE-0.5 to VCC+0.5 V; (4)digital input voltage (Referenced to GND): -0.5 to VCC+0.5 V; (5)DC current, into or out of any pin: ±25 mA; (6)power dissipation in still air: 500 mW; (7)storage temperature range: -65 to +150℃; (8)lead tamperature, 1mm from case for 10 seconds: 260℃.
Features
MC74VHC4052DTR2G features: (1)Fast Switching and Propagation Speeds; (2)Low Crosstalk Between Switches; (3)Diode Protection on All Inputs/Outputs; (4)Analog Power Supply Range (VCC ?VEE) = 2.0 to 12.0 V; (5)Digital (Control) Power Supply Range (VCC ?GND) = 2.0 to 6.0 V; (6)Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts; (7)Low Noise.

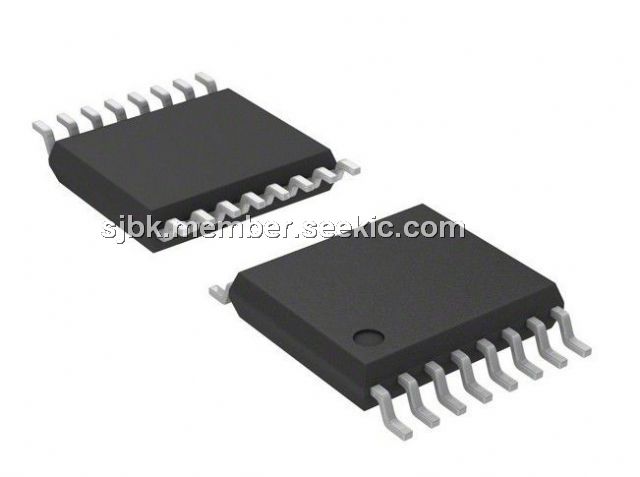

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MC74VHC4052DTR2G |
ON Semiconductor |
Multiplexer Switch ICs 2-6V Analog Mux/DeMux |
Data Sheet |
|
|
|||||||||||||
