Product Summary

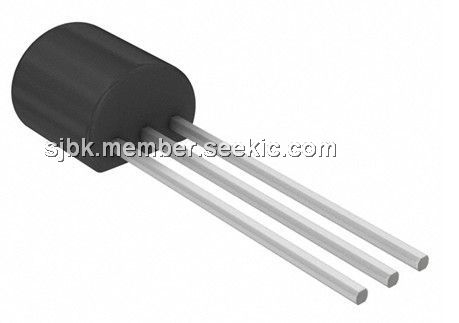

The BC338-25 is an epitaxial planar NPN transistor. It is suitable for eneral purpose application and witching application.
Parametrics
BC338-25 absolute maximum ratings: (1)Collector-Base Voltage, VCBO: 30 V; (2)Collector-Emitter Voltage, VCEO: 25 V; (3)Emitter-Base Voltage, VEBO: 5 V; (4)Collector Current, IC: 800 mA; (5)Emitter Current, IE: -800 mA; (6)Collector Power Dissipation, PC: 625 mW; (7)Junction Temperature, Tj: 150℃; (8)Storage Temperature Range, Tstg: -55 to 150℃.
Features
BC338-25 features: (1)High Current: IC=800mA; (2)DC Current Gain: hFE=100-630 (VCE=1V, Ic=100mA); (3)For Complementary with PNP type BC328.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BC338-25 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BC338-25-BULKS |
Vishay Semiconductors |
Transistors Bipolar (BJT) NPN Audio Amplifier |
Data Sheet |
Negotiable |
|
||||
 |
BC338-25ZL1 |
ON Semiconductor |
Transistors Bipolar (BJT) 800mA 30V NPN |
Data Sheet |
Negotiable |
|
||||
|
BC338-25ZL1G |
ON Semiconductor |
Transistors Bipolar (BJT) 800mA 30V NPN |
Data Sheet |
Negotiable |
|
||||
