Product Summary
The DR0810-223L is the small footprint power inductor which is designed for maximum efficiency and lowest cost. The DR0810-223L is ideal for noise filtering in power amplifiers, power supplies and speaker crossover networks. The DR0810-223L is is available in a broad range of inductance from 3.3 to 1000 μH with 10% tolerance for all values above 8.2 μH. Its open construction allows current ratings up to 9.5 Amps with a mere 0.01 Ohms of resistance. It has industry-standard pin spacing of 5 mm and a rugged PVC sleeve to completely protect the winding.
Parametrics
DR0810-223L features: (1)Low cost, high efficiency option for choke applications; (2)Inductance values from 3.3 to 1000 μH; (3)Current ratings up to 9.5 Amps; (4)Industry standard 5 mm lead spacing; (5)PVC sleeve protects the winding; (6)RoHS-compliant. Tin-silver over tin over copper over steel terminations。
Features
DR0810-223L absolute maximum ratings: (1)Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent; (2)SRF measured using an Agilent/HP 4191A or equivalent; (3)Irms: Current that causes the specified temperature rise from 25℃ ambient. Details ; (4)Ambient temperature range: –40 to +85℃ with Irms current ; (5)Storage temperature range: Component: –40 to +85℃; (6)Packaging tray or tape: –40 to +80℃; (7)Electrical specifications at 25℃

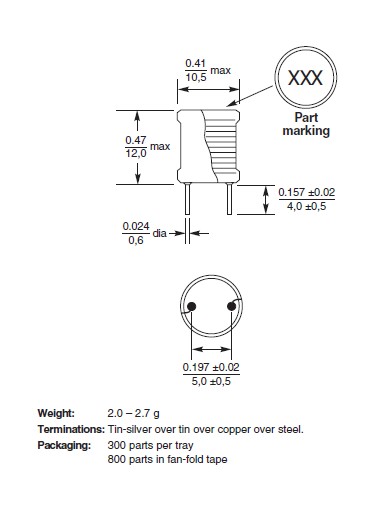

Diagrams
