Product Summary

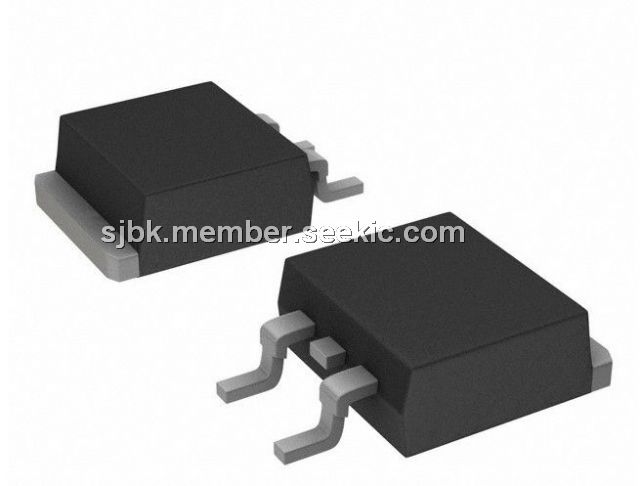

The L7812 three-terminal positive regulator is available in TO-220, TO-220FP, TO-3, D2PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. The regulator L7812 can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, the L7812 can be used with external components to obtain adjustable voltage and currents.

Parametrics

L7812 absolute maximum ratings: (1)VI DC input voltage for VO= 5 to 18 V: 35V, for VO= 20, 24 V: 40V; (2)IO Output current: Internally limited; (3)PD Power dissipation: Internally limited; (4)TSTG Storage temperature range: -65 to 150 ℃; (5)TOP Operating junction temperature range: -55 to 150℃.

Features

L7812 features: (1)Output current to 1.5A; (2)Output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition soa protection.

Diagrams

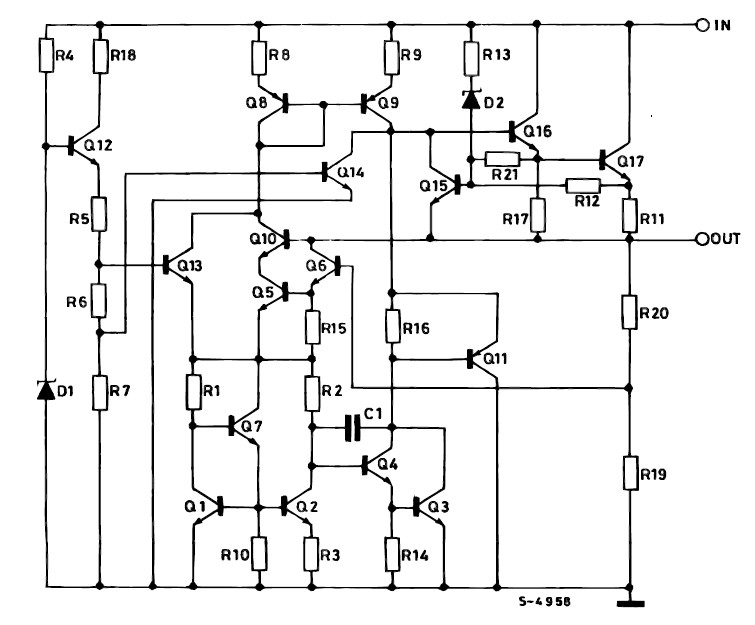

L7812 Schematic diagram
