Product Summary

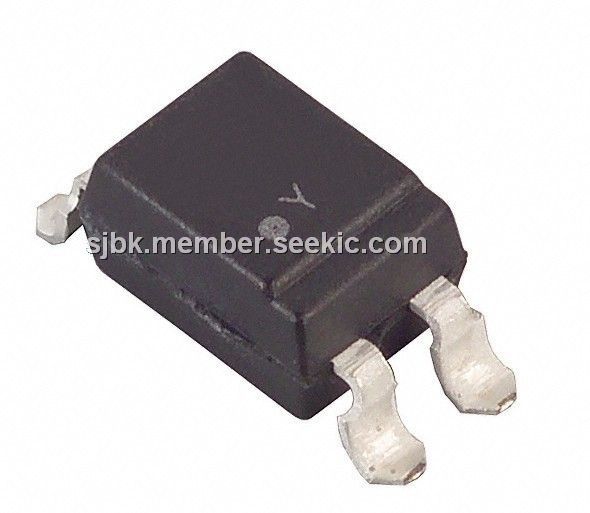

The LTV-356T is a Single Channel 80 V 3750 Vrms Transistor. The applications of the LTV-356T include Hybrid substrates that require high density mounting, Programmable controllers.

Parametrics

LTV-356T absolute maximum ratings: (1)Forward Current: 50 mA; (2)Reverse INPUT Voltage: 6 V; (3)Power Dissipation: 70 mW; (4)Collector - Emitter Voltage: 80 V; (5)Emitter - Collector Voltage: 6 V; (6)Collector Current: 50 mA; (7)Collector Power Dissipation: 150 mW; (8)Total Power Dissipation: 170 mW; (9)Isolation Voltage: 3,750 Vrms; (10)Operating Temperature: -55 ~ +110 ℃; (11)Storage Temperature: -55 ~ +150 ℃; (12)Soldering Temperature: 260 ℃; (13)Junction Temperature: 125 ℃.

Features

LTV-356T features: (1)Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V ); (2)High input-output isolation voltage ( Viso = 3,750Vrms ); (3)High collector-emitter voltage ( VCEO = 80V ); (4)Employs double transfer mold technology; (5)Subminiature type ( The volume is smaller than that of conventional DIP type by as far as 30% ); (6)Mini-flat package: 2.0mm profile : LTV-356T; (7)UL approved ( No. E113898 ); (8)CUL approved ( No. E113898 , 01SC19287 ); (9)CSA approved ( No. 1243207 ); (10)FIMKO approved ( No. FI-16420 ); (11)NEMKO approved ( No. P01100403 ); (12)DEMKO approved ( No. 310475-01 ); (13)SEMKO approved ( No. 0109173 / 01-08 ); (14)VDE approved ( No. 094722 ); (15)RoHS compliance.

Diagrams

LTV-356T block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTV-356T
LTV-356T

Lite-On

Transistor Output Optocouplers Optocoupler Phototrans

Data Sheet

0-1: $0.13
1-10: $0.12
10-50: $0.10
50-100: $0.09
