Product Summary

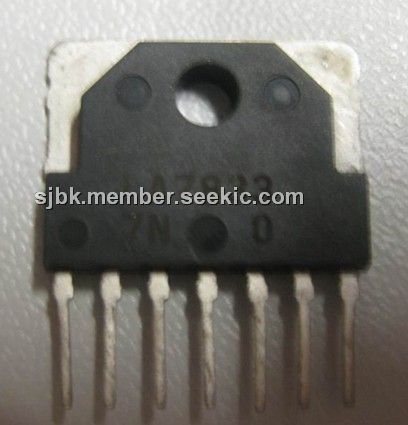

The LA7833 is a monolithic linear IC for vertical deflection output for large color television sets that requires few external components and dissipates little power. When used in conjunction with the LA7833 of video chroma deflection ICs, it is possible to create a stable and compact vertical output deflection circuit.
Parametrics
LA7833 absolute maximum ratings: (1)Maximum supply voltage, Pump-up block, V6 max: 30V ; (2)Maximum supply voltage, (Output block), V3 max: 62V; (3)Deflection output current, I2 max: ±1.5Ap-o ; (4)Allowable power dissipation, Pd max: 8.0W ; (5)Operating temperature, Topr: -20 to +85℃ ; (6)Storage temperature, Tstg: -40 to +150℃ ; (7)Thermal resistance, θj-c: 4℃/W.
Features
LA7833 features: (1)High output; (2)Low power dissipation due to built-in pump-up circuit; (3)Few external components needed; (4)Thermal protection circuit built in.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LA7833 |
Other |
|
Data Sheet |
Negotiable |
|
||||
