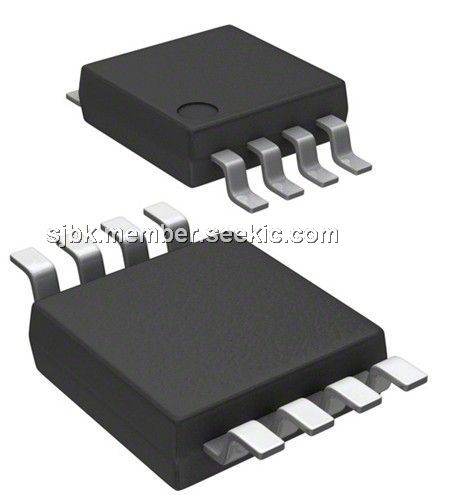

LM2623MM

DC-DC switching regulator, MSOP8, -0.5 V to 14.5V, 500mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: LM2623MM

Brand:: National Semiconductor - NS | Pack: MSOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-14

From Other Seller

Part Number:LM2623MM
US $0.01 - 100.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM2623MM is a high efficiency, general purpose, step-up DC-DC switching regulator for battery-powered and low input voltage systems. It accepts an input voltage between 0.8 and 14 volts and converts it into a regulated output voltage between 1.24 and 14 volts. Efficiencies up to 90% are achievable with the LM2623. The applications of the LM2623MM include Cameras, Pagers and Cell Phones, PDAs,Palmtop Computers, GPS devices, White LED Drive, TFT or Scanned LCDs, Flash Memory Programming, Hand-Held Instruments, 1, 2, 3 or 4 Cell Alkaline Systems and 1, 2 or 3 Cell Lithium-ion Systems.

Parametrics

LM2623MM absolute maximum ratings: (1)SW Pin Voltage: -0.5 V to 14.5V; (2)BOOT, VDD, EN and FB Pins: -0.5V to 10V; FREQ Pin: 100μA; (3)TJmax: 150℃; (4)Storage Temperature Range: -65 to +150℃; (5)Lead Temp. (Soldering, 5 sec): 260℃; (6)Power Dissipation (TA=25℃): 500mW; (7)ESD Rating: 2kV.

Features

LM2623MM features: (1)Good Efficiency Over a Very Wide Load Range; (2)Very Low Output Voltage Ripple; (3)Small, Mini-SO-8 Package (Half the Footprint of Standard 8 pin SO Package); (4)1.09 mm Package Height; (5)Up to 2 MHz Switching Frequency; (6)8V to 14V Operating Voltage; (7)1.1V Start-up Voltage; (8)1.24V - 14V Adjustable Output Voltage; (9)Up to 2A Load Current at low Output Voltages; (10)0.17Ω Internal MOSFET; (11)Up to 90% Regulator Efficiency; (12)80μA Typical Operating Current (into VDD pin of supply); (13)<2.5μA Guaranteed Supply Current In Shutdown; (14)4mm × 4mm Thermally Enhanced LLP Package Option.
