Product Summary

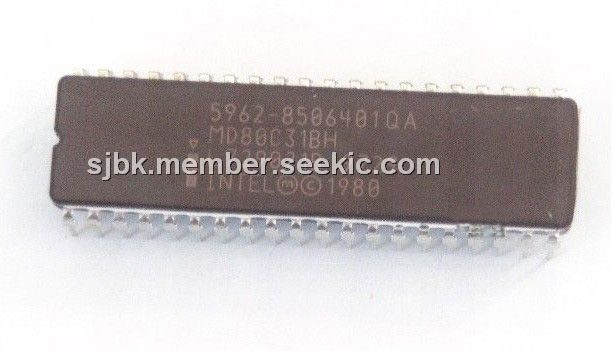

The MD80C31BHC is a CHMOS single-chip 8-bit microcontroller. The MD80C31BHC is fabricated on Intel’s reliable CHMOS process and are functionally compatible with the standard MCS 51 HMOS microcontroller products. This technology combines the high speed and density characteristics of HMOS with the low power attributes of CHMOS. This combination expands the effectiveness of the powerful MD80C31BHC architecture and instruction set. Like the MD80C31BHC versions, It has the following features: 4 Kbytes of EPROM/ROM; 128 bytes of RAM; 32 I/O lines; two 16-bit timer/counters; a five-source two-level interrupt structure; a full duplex serial port; and on-chip oscillator and clock circuitry. In addition, the MD80C31BHC exhibits low operating power, along with two software selectable modes of reduced activity for further power reduction-Idle and Power Down.
Parametrics
MD80C31BHC absolute maximum ratings: (1)Extended Automotive Temperature Range (-40℃ to +125℃ Ambient); (2)High Performance CHMOS Process; (3)Power Control Modes; (4)4 Kbyte On-Chip ROM/EPROM; (5)128 x 8-bit RAM; (6)32 Programmable I/O Lines; (7)Two 16-Bit Timer/Counters; (8)5 Interrupt Sources; (9)Quick-Pulse EPROM Programming; (10)2-Level Program Memory Lock EPROM; (11)Boolean Processor; (12)Programmable Serial Port; (13)TTL- and CMOS-Compatible Logic Levels; (14)64K External Program Memory Space; (15)64K External Data Memory Space; (16)IDLE and POWER DOWN Modes; (17)ONCE Mode Facilitates System Testing; (18)Available in 12 MHz and 16 MHz Versions; (19)Available in PLCC and DIP Packages.
Features
MD80C31BHC features: (1)Ambient Temperature Under Bias: -40℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on EA/VPP Pin to VSS: 0V to +13.0V; (4)Voltage on Any Other Pin to VSS: -0.5V to +6.5V; (5)IOL per I/O pin: 15 mA; (6)Power Dissipation: 1.5W (Based on package heat transfer limitations, not device power consumption).; (7)Typical Junction Temperature (TJ): 135℃ (Based upon ambient temperature at +125℃); (8)Typical Thermal Resistance Junction-to-Ambient (θJA): PDIP: 75℃/W; PLCC: 46℃/W.
