Product Summary

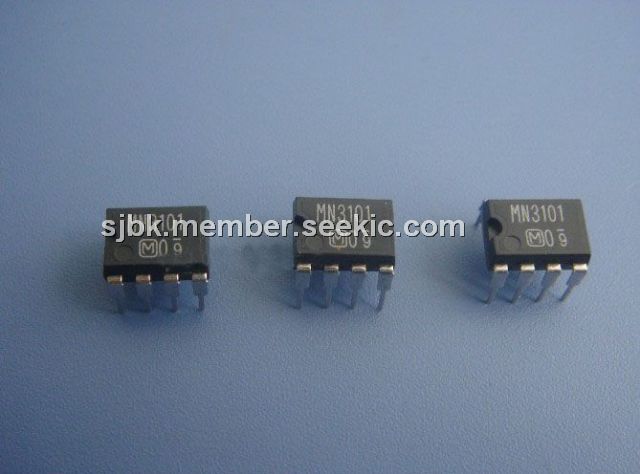

The MN3101 is a CMOS LSI generating two phase clock single of low output impedance to drive MN3000 series BBD. Built-in VGG power supply circuit for the MN3000 series BBD provides most suitable VGG voltage for the BBD when the MN3101 is used with the same power source as BBD. Osicilation is abled by external resistors and capacitors, and also oscillation drive is possible by the separate excitation oscillation. The MN3101 is suitalbe for BBD clock generator/driver.
Parametrics
MN3101 absolute maximum ratings: (1)drain supply voltage, VDD: -18 to 0.3V; (2)input terminal voltage, VI: VDD-0.3 to 0.3V; (3)output terminal voltage, Vo: VDD-0.3 to 0.3V; (4)power dissipation, PD: 200mW; (5)operating ambient temperature, Topr: -10 to 70℃; (6)storage temperature, Tstg: -30 to 125℃.
Features
MN3101 features: (1)BBD direct driving capability of up to two MN3005s; (2)self and separate oscillations; (3)two phase clock output; (4)VGG voltage generator is built-in for the BBD; (5)single power supply: -8 to -16V; (6)8-lead dual-in-line platic package.

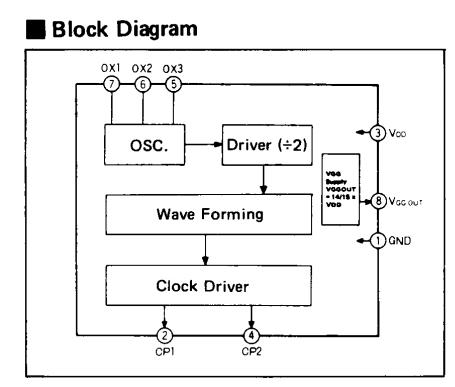

Diagrams
 |
