Product Summary

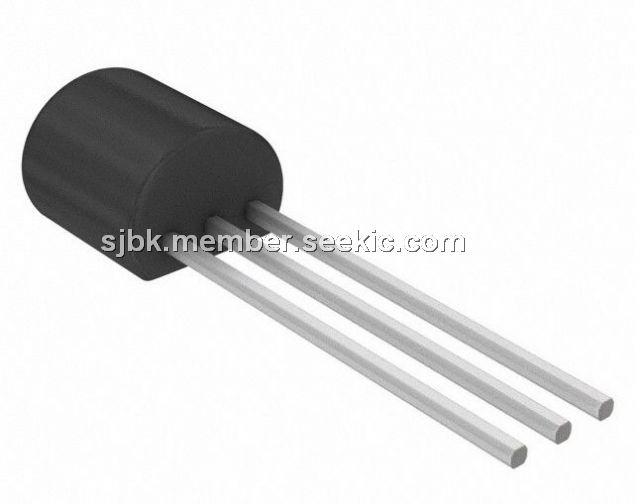

The 2n5457 is a low level audio amplifier and switching transistor, and can be used for analog switching applications. Sourced from Process 55.

Parametrics

2n5457 absolute maximum ratings: (1)VDG, Drain-Gate Voltage: 25 V; (2)VGS, Gate-Source Voltage: - 25 V; (3)IGF, Forward Gate Current: 10 mA; (4)TJ, Tstg, Operating and Storage Junction Temperature Range: -55 to +150℃.

Features

2n5457 features: (1)PD, Total Device Dissipation: 62.5mW; 5.0mW/℃ when Derate above 25℃; (2)RθJC, Thermal Resistance, Junction to Case: 125℃/W; (3)RθJA, Thermal Resistance, Junction to Ambient: 357 ℃/W.

Diagrams

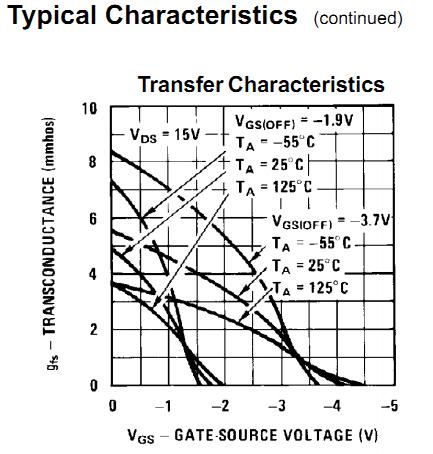

2n5457 Typical Characteristics
