Product Summary

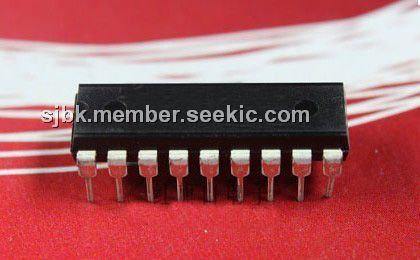

The PT2270-M4 is a remote control decoder paired with PT2260 or PT2262 utilizing CMOS Technology. It has 12 bits of tri-state address pins providing a maximum of 531,441 (or 312) address codes; thereby drastically reducing any code collision and unauthorized code scanning possibilities. The PT2270-M4 is available in several options to suit every application needs: variable number of data output pins, latch or momentary output type. The applications of the PT2270-M4 include car security system, garage door controller, remote control fan, home security/automation system, remote control toys, remote control for industrial use.

Parametrics

PT2270-M4 absolute maximum ratings: Operating Voltage: (1)Operating temperature, Topr: -40 ~ +85 ℃; (2)Storage temperature, Tstg: -65 ~ +150 ℃.

Features

PT2270-M4 features: (1)CMOS Technology; (2)Low Power Consumption; (3)Very High Noise Immunity; (4)Up to 12 Tri-State Code Address Pins; (5)Up to 6 Data Pins; (6)Operating Voltage: Vcc = 2 ~ 10 Volts; (7)Single Resistor Oscillator; (8)Latch or Momentary Output Type.

Diagrams

PT2270-M4 circuit dragram
