Product Summary

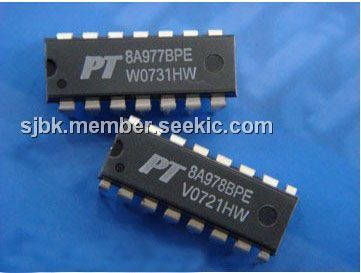

The PT8A978BPE is a remote controller. The PT8A978BPE provides a complete control functions to the remotecontrolled toy. The PT8A978BPE has five input pins corresponding with the five function buttons i.e, forward, backward, rightward, leftward and turbo. The encoding circuit in the PT8A978BPE sends digital codes to the two output pins SO and SC. The digital codes correspond to the definite function buttons or their combinations. The SO and SC outputs are used in wireless and infra-red applications respectively.The PT8A978BPE has five output pins corresponding with the five actions. The received signals are amplified by the three-stage amplifier, and then the appropriate amplified signals are sampled, fault-tolerantly checked and decoded to control the actions of the remote-controlled toy.

Parametrics

PT8A978BPE absolute maximum ratings: (1)Storage Temperature: -25℃ to +85℃; (2)Ambient Temperature with Power Applied: -10℃ to +40℃; (3)Supply Voltage to Ground Potential (Inputs & VCC Only): -0.5 to +6.0V; (4)Supply Voltage to Ground Potential (Outputs & D/O Only): -0.5 to +6.0V; (5)DC Input Voltage: -0.5 to +6.0V; (6)DC Output Current: 20mA; (7)Power Dissipation: 500mW.

Features

PT8A978BPE features: (1)PT8A978BPE works as decoder; (2)Five pins for five control functions; (3)Operating power-supply voltage: 2.5V to 5.0V ; (4)Auto-power-off if no press on any button in 8s or continuously press on any button over 4 minues; (5)Manual-power-off with OFF button; (6)On-chip oscillator with an external resistor; (7)On-chip reversing amplifiers; (8)Low operating current; (9)Few external components needed; (10)Package: 14-pin DIP, 14-pin SOIC, 16-pin DIP and 16-pin SOIC.

Diagrams

PT8A978BPE block dragram
