Product Summary
The RD70HVF1 is a MOS FET type transistor specifically designed for VHF/UHF High power amplifiers applications. It is suitable for For output stage of high power amplifiers in VHF/UHF Band mobile radio sets.
Parametrics
RD70HVF1 absolute maximum ratings: (1)VDSS, Drain to source voltage: 30 V; (2)VGSS, Gate to source voltage: ±20 V; (3)Pch, Channel dissipation: 150 W; (4)Pin, Input power: 10W; (5)ID, Drain current: 20 A; (6)Tch, Channel temperature: 175℃; (7)Tstg, Storage temperature: -40 to +175℃; (8)Rth j-c, Thermal resistance: 1.0℃/W.
Features
RD70HVF1 features: (1)High power and High Gain: Pout>70W, Gp>10.6dB @Vdd=12.5V,f=175MHz; Pout>50W, Gp>7.0dB @Vdd=12.5V,f=520MHz; (2)High Efficiency: 60%typ.on VHF Band; (3)High Efficiency: 55%typ.on UHF Band.

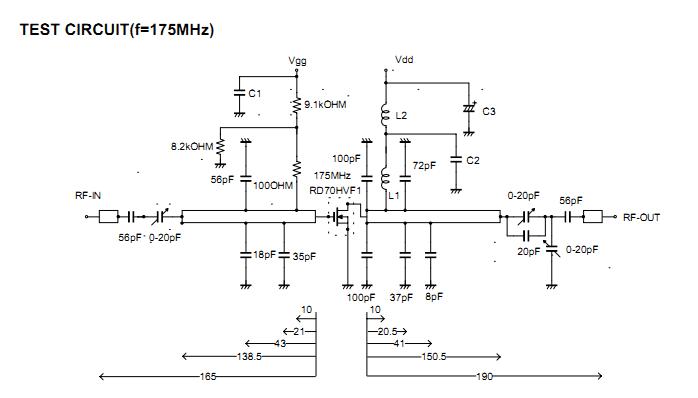

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

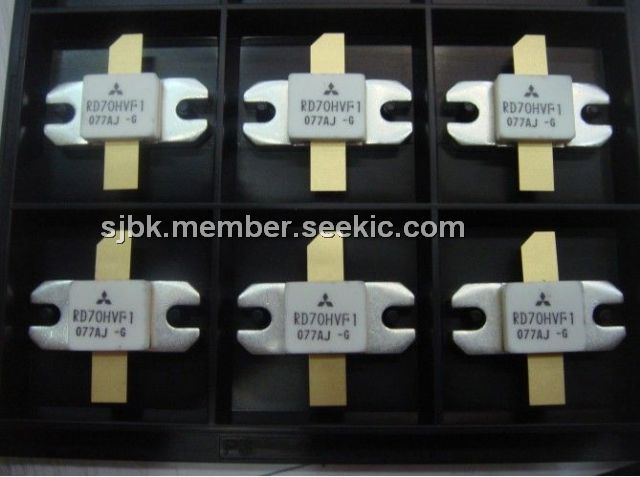

 RD70HVF1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
