Product Summary

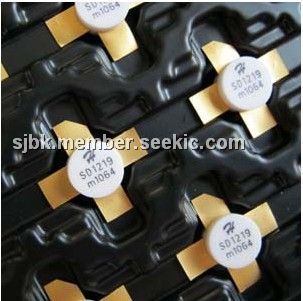

The SD1219 is an NPN silicon RF power transistor. The SD1219 is designed for 12.5 V Collector Modulated AM Class C Amplifier Service in the 118 to 136 MHz Avionics Communication Band.
Parametrics
SD1219 absolute maximum ratings: (1)IC: 6.5 A; (2)VCE: 35 V; (3)VCB: 65 V; (4)PDISS: 75 W at TC = 25℃; (5)TJ: -65 to +200℃; (6)TSTG: -65 to +150℃; (7)θJC: 2.3℃/W.
Features
SD1219 features: (1)PG = 8 dB Typical at 60 W/ 175 MHz; (2)Guaranteed 13.5 and 28 V Performance; (3)Omnirel Metallization System.
