Product Summary
The SN74LVC1G08DBV is a single 2-input positive-and gate. The SN74LVC1G08DBV performs the Boolean function Y = A ·B or Y = A+B in positive logic. NanoStar. and NanoFree. package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Parametrics
SN74LVC1G08DBV absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 6.5 V; (2)Input voltage range, VI: -0.5 V to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 V to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO: -0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): -50 mA; (6)Output clamp current, IOK (VO < 0): -50 mA; (7)Continuous output current, IO: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Package thermal impedance, θJA: DBV package: 206℃/W; DCK package: 252℃/W; DRL package: 142℃/W; YEA/YZA package: 154℃/W; YEP/YZP package: 132℃/W; (10)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74LVC1G08DBV features: (1)Available in the texas instruments NanoStarTM and NanofreeTM packages; (2)Ioff supports Partial-power-down mode operation; (3)Supports 5-V VCC operation; (4)Latch-up performance exceeds 100 mA Per JESD 78, Class II; (5)Inputs accept voltages to 5.5 V ; (6)Max tpd of 3.6 ns at 3.3 V; (7)±24-mA output drive at 3.3 V; (8)Low power consumption, 10-μA Max ICC; (9)ESD protection exceeds JESD 22:2000-V human-body model (A114-A); 200-V machine model (A115-A); 1000-V charged-device model (C101).

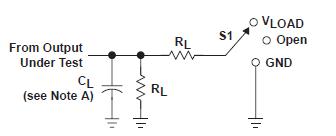

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVC1G08DBVR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Single 2 Input |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G08DBVRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Single 2-Input Pos AND Gate |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G08DBVTE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) SNGL 2 Input Pos AND Gate |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G08DBVTG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) SNGL 2 Input Pos AND Gate |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G08DBVT |
Texas Instruments |
Gates (AND / NAND / OR / NOR) SNGL 2 Input Pos AND Gate |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G08DBVRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Single 2 Input |
Data Sheet |
|
|
||||||||||||
