Product Summary

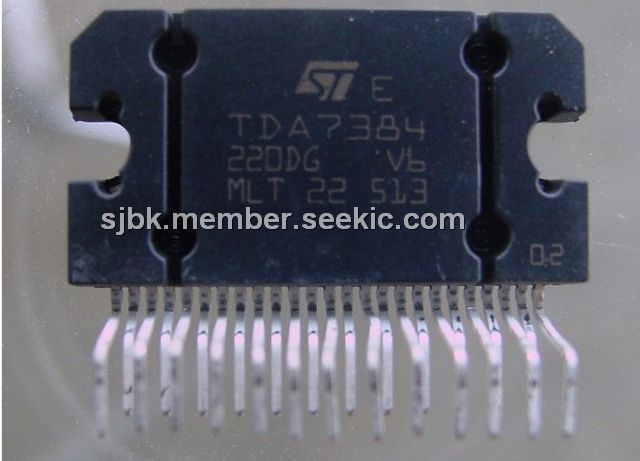

The TDA7384 is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high end car radio applications. Thanks to the fully complementary PNP/NPN output configuration the TDA7384 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced components count allows very compact sets.
Parametrics
TDA7384 absolute maximum ratings:(1)Operating Supply Voltage, VCC: 18 V; (2)DC Supply Voltage, VCC(DC) 28 V; (3)Peak Supply Voltage (t = 50ms), VCC (pk): 50 V; (4)Output Peak Current, Repetitive (Duty Cycle 10% at f = 10Hz) , IO: 4.5A; (5)Output Peak Current, Non Repetitive (t = 100ms), IO: 5.5A; (6)Power dissipation, (Tcase = 70℃), Ptot: 80 W; (7)Junction Temperature, V: 150 ℃; (8)Storage Temperature, Tstg: – 55 to 150℃.
Features
TDA7384 features: (1)output short circuit to gnd, to vs, across the load; (2)veryinductive loads; (3)overrating chip temperature with soft thermal limiter; (4)load dump voltage; (5)fortuitous open gnd; (6)reversed battery; (7)ESD; (8)low distortion; (9)low output noise; (10)st-by function; (11)mute function; (12)automute at min. supply voltage detection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7384A |
STMicroelectronics |
Audio Amplifiers 4X35W Quad Brdg Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
TDA7384B |
STMicroelectronics |
Audio Amplifiers Car-Radio Amplifier 18V Op 28V DC 36W |
Data Sheet |
|
|
||||||||||||
