TVP5154APNP

Product Summary

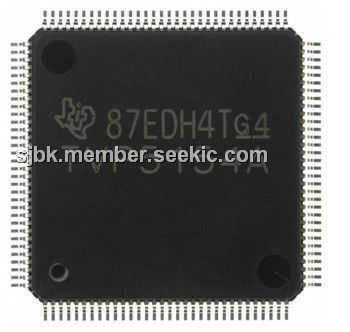

The TVP5154APNP device is a 4-channel, low-power, NTSC/PAL/SECAM video decoder. Available in a space-saving 128-pin thin quad flat pack (TQFP) package, each channel of the TVP5154APNP decoder converts NTSC, PAL, or SECAM video signals to 8-bit ITU-R BT.656 format. Discrete syncs are also available. All four channels of the TVP5154APNP are independently controllable. The decoders share one crystal for all channels and for all supported standards. The TVP5154APNP can be programmed using a single inter-integrated circuit (I2C) serial interface. The decoder uses a 1.8-V supply for its analog and digital supplies, and a 3.3-V supply for its I/O. The optimized architecture of the TVP5154APNP decoder allows for low power consumption. The decoder consumes less than 720 mW of power in typical operation. The applications of the TVP5154APNP include security camera systems, large format video wall displays, games systems.

Parametrics

TVP5154APNP absolute maximum ratings: (1)Supply voltage range, IOVDD to DGND: -0.5 to 3.6V; DVDD to DGND -0.5 to 2V; PLL_AVDD to PLL_AGND: -0.5 to 2V; AVDD to AGND: -0.5 to 2V; (2)Digital input voltage range, VI to DGND: -0.5 to 3.6 V; (3)Input voltage range, XIN to PLL_GND: -0.5 to 2 V; (4)Analog input voltage range, AI to AGND: -0.2 to 2 V; (5)Digital output voltage range, VO to DGND: -0.5 to 3.6 V; (6)Operating free-air temperature range, TA: 0 to 70 ℃; (7)Storage temperature range, Tstg: -65 to 150℃.

Features

TVP5154APNP features: (1)Four Separate Video Decoder Channels With Features for Each Channel: Accept NTSC (M, 4.43), PAL (B, D, G, H, I, M, N), and SECAM (B, D, G, K, K1, L) Video data; Support ITU-R BT.601 Standard Sampling; High-Speed 9-Bit Analog-to-Digital Converter (ADC); Two Composite Inputs or One S-video Input (for Each Channel); Fully Differential CMOS Analog Preprocessing Channels With Clamping and Automatic Gain Control (AGC) for Best Signal to Noise (SNR) Performance; Brightness, Contrast, Saturation, Hue, and Sharpness Control Through Inter-Integrated Circuit (I2C); Complementary 4-Line (3-H Delay) Adaptive Comb Filters for Both Cross-Luminance and Cross-Chrominance Noise Reduction; Patented Architecture for Locking to Weak, Noisy, or Unstable Signals.; (2)Four Independent Polymorphic Scalers; (3)Single or Concurrent Scaled and Unscaled Outputs Via Dual Clocking Data, Interleaved 54-MHz Data or Single 27-MHz Clock; (4)Scaled/Unscaled Image Toggle Mode Gives Variable Field Rate for Both Scaled and Unscaled Video; (5)Low Power Consumption: 700 mW Typical; (6)128-Pin Thin Quad Flat Pack (TQFP) Package; (7)Single 14.31818-MHz Crystal for All Standards and All Channels; (8)and All Channels; (9)Internal Phase-Locked Loop (PLL) for Line-Locked Clock (Separate for Each Channel) and Sampling; (10)Sub-Carrier Genlock Output for Synchronizing Color Sub-Carrier of External Encoder; (11)Standard Programmable Video Output Format: ITU-R BT.656, 8-Bit 4:2:2 With Embedded Syncs; 8-Bit 4:2:2 With Discrete Syncs; (12)Advanced Programmable Video Output Formats: 2× Over-Sampled Raw Vertical Blanking Interval (VBI) Data During Active Video; Sliced VBI Data During Horizontal Blanking or Active Video; (13)VBI Modes Supported: Teletext (NABTS, WST); Closed-Caption Decode With FIFO, and Extended Data Services (EDS); Wide Screen Signaling (WSS), Video Program System (VPS), Copy Generation Management System (CGMS), Vertical Interval Time Code (VITC); Gemstar 1×/2× Electronic Program Guide Compatible Mode; Custom Configuration Mode Allows User to Program the Slice Engine for Unique VBI Data Signals; (14)Improved Fast Lock Mode Can Be Used When Input Video Standard Is Known and Signals on Switching Channels Are Clean; (15)Four Possible I2C Addresses Allowing 16 Decoder Channels on a Single I2C Bus.

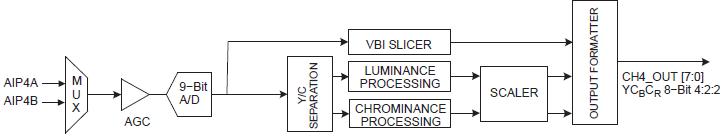

Diagrams
