Product Summary

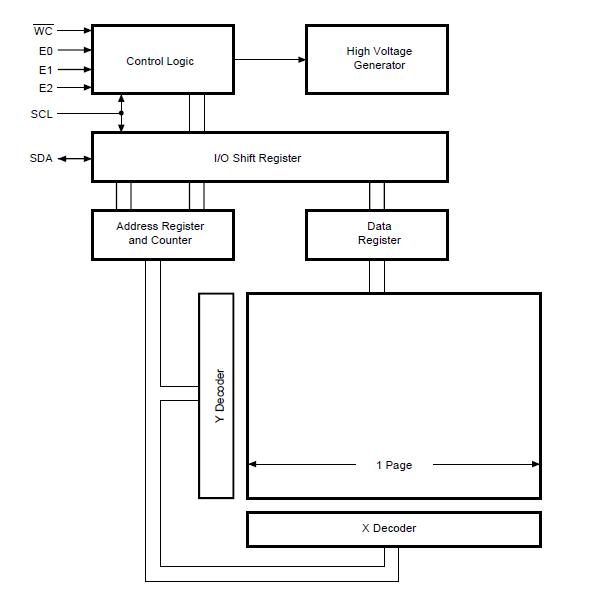

The 24C64 is an I2C-compatible electrically erasable programmable memory (EEPROM). The 24C64 is organized as 8192 x 8 bits (M24C64) and 4096 x 8 bits (M24C32).bi-directional data line and a clock line. The 24C64 carries a built-in 4-bit Device Type Identifier code (1010) in accordance with the I2C bus definition. The 24C64 behaves as a slave in the I2C protocol, with all memory operations synchronized by the serial clock. Read and Write operations are initiated by a Start condition, generated by the bus master. The Start condition is followed by a Device Select Code and Read/Write bit (RW) (as described in Table 3.), terminated by an acknowledge bit.

Parametrics

24C64 absolute maximum ratings: (1)Storage Temperature, TSTG: -65 to 150℃; (2)Input or Output range, VIO: -0.50 to 6.5V; (3)Supply Voltage, VCC: -0.50 to 6.5V; (4)Electrostatic Discharge Voltage (Human Body model), VESD: -4000 to 4000V.

Features

24C64 features: (1)Two-Wire I2C Serial Interface Supports 400kHz Protocol; (2)Single Supply Voltage: 4.5 to 5.5V for 24C64; (3)Write Control Input; (4)BYTE and PAGE WRITE (up to 32 Bytes); (5)RANDOM and SEQUENTIAL READ Modes; (6)Self-Timed Programming Cycle; (7)Automatic Address Incrementing; (8)Enhanced ESD/Latch-Up Protection; (9)More than 1 Million Erase/Write Cycles; (10)More than 40-Year Data Retention.
