Product Summary

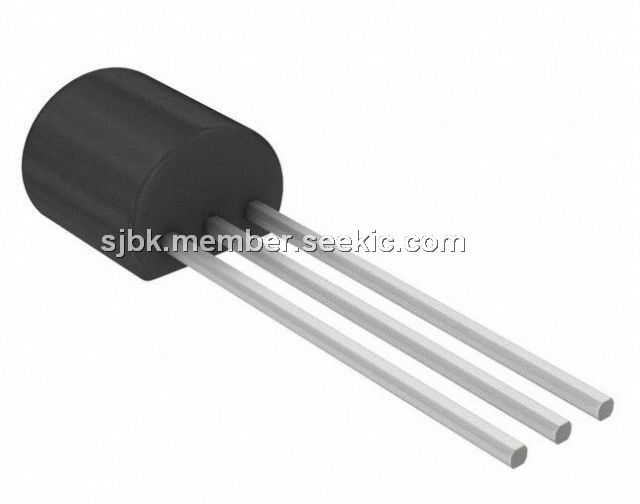

The 2n5485 is a N-Channel RF Amplifier. This device is designed primarily for electronic switching applications such as low On Resistance analog switching. Sourced from Process 50.
Parametrics
2n5485 absolute maximum ratings: (1)VDG, Drain-Gate Voltage: 25 V; (2)VGS, Gate-Source Voltage: - 25 V; (3)IGF, Forward Gate Current: 10 mA; (4)TJ ,Tstg, Operating and Storage Junction Temperature Range: -55 to +150℃.
Features
2n5485 features: (1)PD, Total Device Dissipation: 350mW; 1.8mW/℃ when Derate above 25℃; (2)RθJC, Thermal Resistance, Junction to Case: 125℃/W; (3)RθJA, Thermal Resistance, Junction to Ambient: 357℃/W.

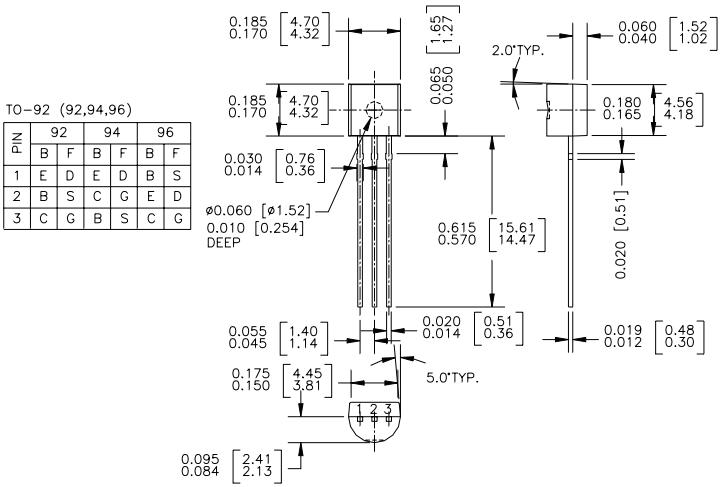

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N5485 |
Central Semiconductor |
JFET N-Chan JFET |
Data Sheet |
|
|
||||||||||||
 |
2N5485_D26Z |
Fairchild Semiconductor |
Transistors RF JFET NCh RF Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5485_D26Z_Q |
Fairchild Semiconductor |
Transistors RF JFET NCh RF Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5485_D27Z |
Fairchild Semiconductor |
Transistors RF JFET NCh RF Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5485_D74Z |
Fairchild Semiconductor |
Transistors RF JFET NCh RF Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5485_D75Z |
Fairchild Semiconductor |
Transistors RF JFET NCh RF Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N5485_Q |
Fairchild Semiconductor |
Transistors RF JFET NCh RF Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
 |
2N5485-E3 |
Vishay/Siliconix |
JFET 25V 2mA |
Data Sheet |
Negotiable |
|
||||||||||||
