Product Summary

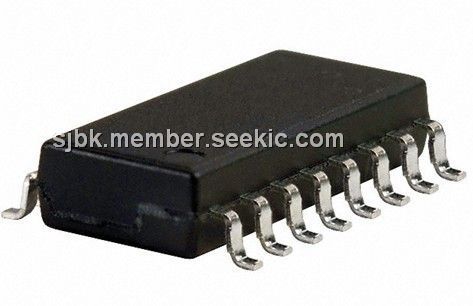

The 4816P-1-103 is a Thick Film Surface Mounted Medium Body.

Parametrics

4816P-1-103 absolute maximum ratings: (1)Resistance Range: 10 ohms to 2.2 megohms; (2)Maximum Operating Voltage: 50 V; (3)Temperature Coefficient of Resistance, 50 ohms and above: ±100 ppm/℃; below 50 ohms: ±250 ppm/℃; (4)TCR Tracking (for equal values within a package): 50 ppm/℃ max. for values > 50 ohms; 100 ppm/℃ for values ≤ 50 ohms; (5)Operating Temperature: -55℃to +125℃; (6)Insulation Resistance: 10,000 megohms min.; (7)Dielectric Withstanding Voltage: 200 VRMS; (8)Lead Solderability: Meet requirements of MIL-STD-202; Method 208.

Features

4816P-1-103 features: (1)Lead free versions available (see How to Order Termination option); (2)RoHS compliant (lead free version); (3)Standard E.I.A. package compatible with automatic placement equipment; (4)Tape and reel packaging standard; (5)Custom circuits are available; (6)Marking on contrasting background for permanent identification; (7)Compliant leads to reduce solder joint fatiguing; (8)Standard electrical schematics: isolated, bussed, dual terminator; (9)Now available with improved tolerance to ±0.5 %

Diagrams

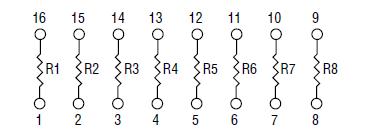

4816P-1-103 circuit dragram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
4816P-1-103
4816P-1-103
Bourns
Resistor Networks & Arrays 10K 2% 16Pin SMT ISOLATED
Data Sheet
0-1: $0.58
1-50: $0.48
50-100: $0.42
100-500: $0.36
4816P-1-103LF
4816P-1-103LF
Bourns
Resistor Networks & Arrays 10K 2% 16Pin SMT
Data Sheet
0-1: $0.25
1-50: $0.25
50-100: $0.23
100-500: $0.21
4816P-1-103F
4816P-1-103F
Bourns
Resistor Networks & Arrays 10K 2% 16Pin SMT ISOLATED
Data Sheet
Negotiable
4816P-1-103DLF
4816P-1-103DLF
Bourns
Resistor Networks & Arrays THICK FILM .5% 10K SMD MED BODY
Data Sheet
0-910: $0.45
910-1000: $0.41
1000-2000: $0.39
2000-5000: $0.37
