Product Summary
The MAX756CPA is a CMOS step-up DC-DC switching regulator for small, low input voltage or battery-powered systems. The MAX756CPA accepts a positive input voltage down to 0.7V and converts it to a higher pin-selectable output voltage of 3.3V or 5V. Typical full-load efficiencies for the MAX756CPA is greater than 87%. The applications of the MAX756CPA include 3.3V to 5V Step-Up Conversion, Palmtop Computers, Portable Data-Collection Equipment, Personal Data Communicators/Computers, Medical Instrumentation and 2-Cell & 3-Cell Battery-Operated Equipment Glucose Meters
Parametrics
MAX756CPA absolute maximum ratings: (1)Supply Voltage (OUT to GND): -0.3V, +7V; (2)Switch Voltage (LX to GND): -0.3V, +7V; (3)Auxiliary Pin Voltages (SHDN, LBI, LBO, REF, 3/5, FB to GND): -0.3V, (VOUT + 0.3V); (4)Reference Current (IREF): 2.5mA; (5)Continuous Power Dissipation: 727mW; (6)Operating Temperature Ranges: 0 to +70℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65 to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX756CPA features: (1)Operates Down to 0.7V Input Supply Voltage; (2)87% Efficiency at 200mA; (3)60μA Quiescent Current; (4)20μA Shutdown Mode with Active Reference and LBI Detector; (5)500kHz Maximum Switching Frequency; (6)±1.5% Reference Tolerance Over Temperature; (7)Low-Battery Detector (LBI/LBO); (8)8-Pin DIP and SO Packages.

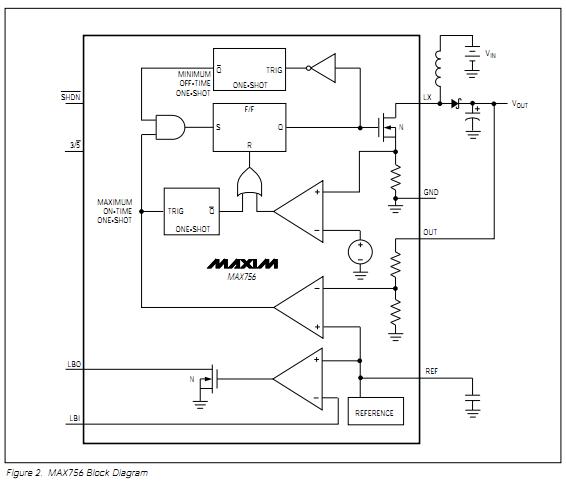

Diagrams

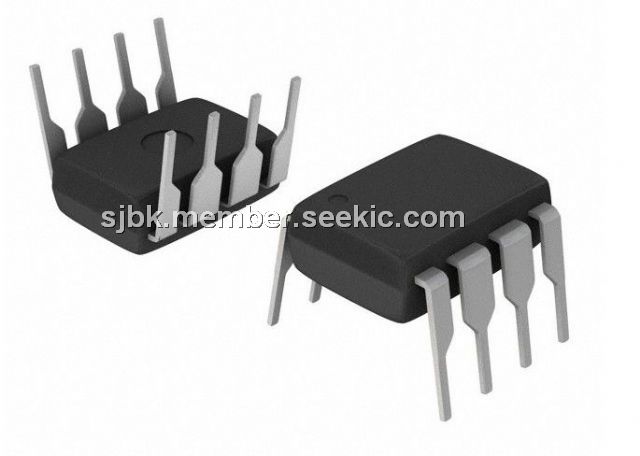

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX756CPA |
Maxim Integrated Products |
DC/DC Switching Converters 3.3/5/AdjV-Out Step Up DC/DC Converter |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX756CPA+ |
Maxim Integrated Products |
DC/DC Switching Converters 3.3/5/AdjV-Out Step Up DC/DC Converter |
Data Sheet |
|
|
