Product Summary
The 74HC4094 is a high-speed Si-gate CMOS device and is pin compatible with the "4094" of the "4000B" series. It is specified in compliance with JEDEC standard no. 7A. The applications of 74HC4094D include Serial-to-parallel data conversion, Remote control holding register.
Parametrics
74HC4094 absolute maximum ratings: (1)propagation delay CL = 15 pF; VCC = 5 V: 15 ns at CP to QS1, 13 ns at CP to QS2, 20 ns at CP to QPn, 18 ns at STR to QPn; (2)maximum clock frequency: 95 MHz; (3)input capacitance: 3.5 pF; (4)power dissipation capacitance per package: 83 pF.
Features
74HC4094 features: (1)Output capability: standard; (2)ICC category: MSI.

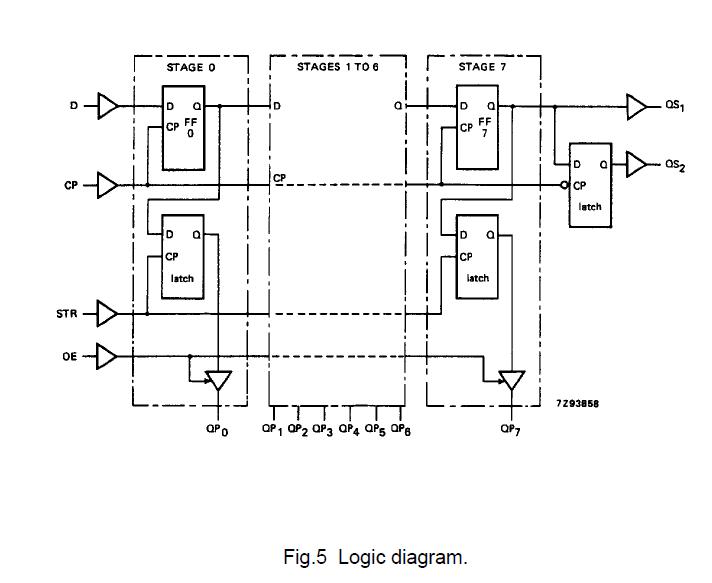

Diagrams
