Product Summary

The SD1446 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed primarily for land mobile transmitter applications. This device utilizes emitter ballasting and is extremely stable and capable of withstanding high VSWR under operating conditions.

Parametrics

SD1446 absolute maximum ratings: (1)VCBO Collector-Base Voltage: 36 V; (2)VCEO Collector-Emitter Voltage: 18 V; (3)VEBO Emitter-Base Voltage: 3.5 V; (4)IC Device Current: 12.0 A; (5)PDISS Power Dissipation: 183 W; (6)TJ Junction Temperature: +200℃; (7)TSTG Storage Temperature: -65 to +150℃.

Features

SD1446 features: (1)50 MHz; (2)12.5 Volts; (3)efficiency 55%; (4)common emitter; (5)gold metallization; (6)Pout = 70 W min. with 10 dB gain.

Diagrams

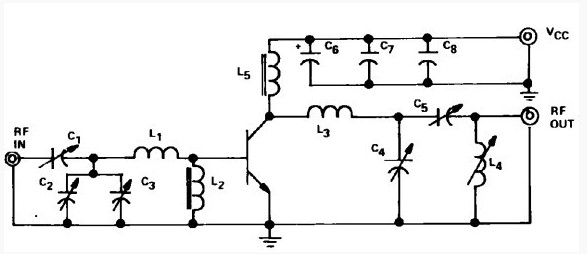

SD1446 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SD1446
SD1446
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $43.20
1-10: $36.00
10-25: $32.40
25-50: $28.80
