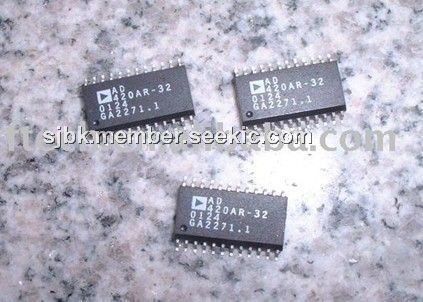

Product Summary
The AD420AR-32 is a complete digital to current loop output converter, designed to meet the needs of the industrial control market. It provides a high precision, fully integrated, low cost single-chip solution for generating current loop signals in a compact 24-lead SOIC or PDIP package. The output current range can be programmed to 4 mA–20 mA, 0 mA–20 mA or an overrange function of 0 mA–24 mA. The AD420AR-32 can alternatively provide a voltage output from a separate pin that can be configured to provide 0 V–5 V, 0 V–10 V, ±5 V or ±10 V with the addition of a single external buffer amplifier.
Parametrics
AD420AR-32 absolute maximum ratings: (1)VCC to GND: 32 V; (2)IOUT to GND: VCC; (3)Digital Inputs to GND: -0.5 V to +7 V; (4)Digital Output to GND: -0.5 V to VLL + 0.3 V; (5)VLL and REF OUT: Outputs Safe for Indefinite Short to Ground; (6)Storage Temperature: -65℃ to +150℃; (7)Lead Temperature (Soldering, 10 sec): +300℃; (8)Thermal Impedance: SOIC (R) Package: θJA = 75℃/W; PDIP (N) Package: θJA = 50℃/W.
Features
AD420AR-32 features: (1)4 mA–20 mA, 0 mA–20 mA or 0 mA–24 mA Current Output; (2)16-Bit Resolution and Monotonicity; (3)60.012% Max Integral Nonlinearity; (4)60.05% Max Offset (Trimmable); (5)60.15% Max Total Output Error (Trimmable); (6)Flexible Serial Digital Interface (3.3 MBPS); (7)On-Chip Loop Fault Detection; (8)On-Chip 5 V Reference (25 ppm/8C Max); (9)Asynchronous CLEAR Function; (10)Maximum Power Supply Range of 32 V; (11)Output Loop Compliance of 0 V to VCC – 2.5 V; (12)24-Lead SOIC and PDIP Packages.

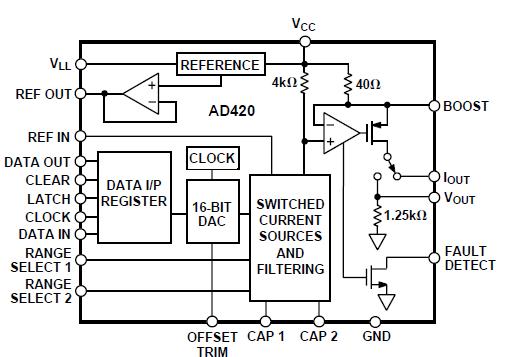

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD420AR-32 |
|
IC DAC SRL 16BIT 24-SOIC |
Data Sheet |
|
|
||||||
|
AD420AR-32-REEL |
|
IC DAC SNGL 16BIT 24-SOIC T/R |
Data Sheet |
|
|
||||||
