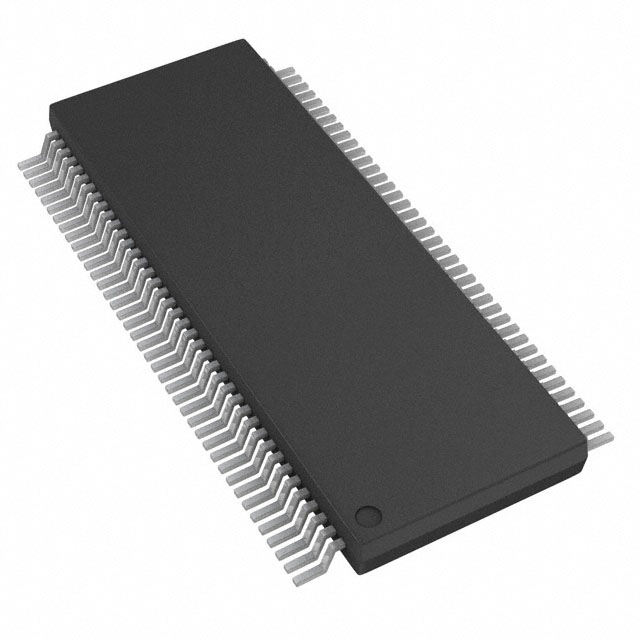

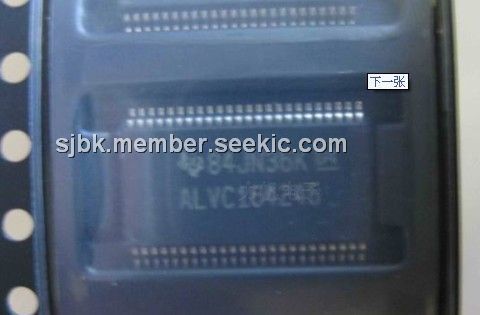

ALVC164245, 16-bit noninverting bus transceiver, TSSOP, 4.6V, 50mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: ALVC164245

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0
