Product Summary

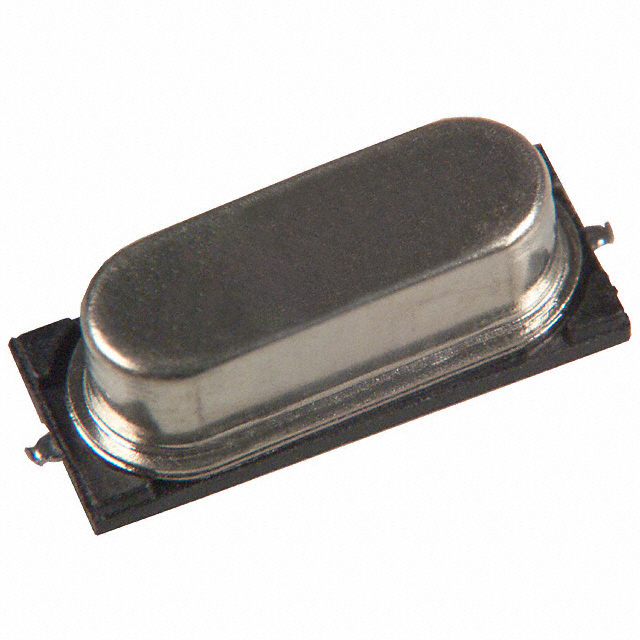

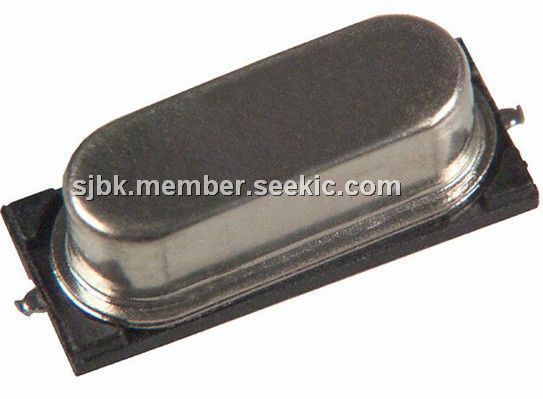

The ATS060SM is a crystal. The ATS060SM crystal series offers excellent long-term stability and reliability in a proven resistance-weld metal package. The excellent shock performance makes it suitable for microprocessor, telecommunication, consumer electronic and networking applications.

Parametrics

ATS060SM absolute maximum rarings: (1)Operating Mode: Fundamental or 3rd Overtone; (2)Crystal Cut: AT-Cut; (3)Frequency Range @ 25℃: 3.5 MHz to 60.0 MHz; (4)Frequency Tolerance: ± 30 ppm Standard ; (5)Frequency Stability Tolerance± 50 ppm Standard; (6)Operating Temperature Range: -20℃ to +70℃; (7)Storage Temperature Range: -55℃ to +125℃; (8)Equivalent Series Resistance: See ESR Table; (9)Load Capacitance or Resonance Mode: See Standard Part Number Tables ; (10)Shunt Capacitance (C0): 7.0 pF Maximum; (11)Drive Level: 10 μW Typical, 100 μW Maximum; (12)Reflow Condition, per JEDEC J-STD-020: +255℃ ± 5℃, 10 Seconds Maximum.

Features

ATS060SM features: (1)Standard HC-49/US or HC-49/US SM Low Profile Package Options; (2)Stable Frequency Over Temperature and Drive Level; (3)Fundamental and 3rd Overtone Crystals; (4)Frequency Range 3.5 - 60 MHz; (5)Frequency Tolerance, ±30 ppm Standard; (6)Frequency Stability, ±50 ppm Standard; (7)Operating Temperature, -20℃ to +70℃; (8)Tape & Reel Packaging Available; (9)RoHS/Green Compliant.

Diagrams

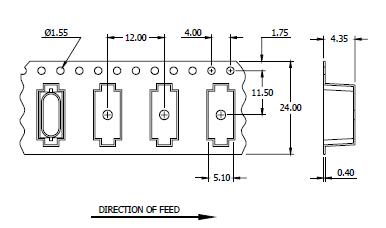

ATS060SM block diagram
